Window Wiper Intermittent Control Unit, Rear Connector End View
Window Wiper Intermittent Control Unit, Rear Connector End View

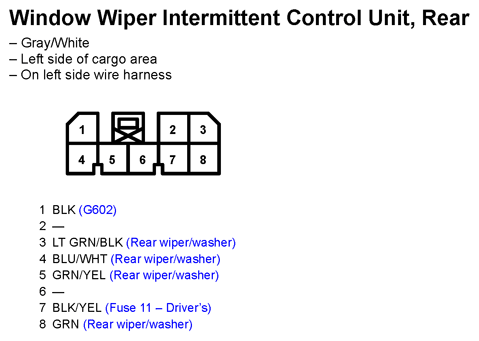

Fig 1: Window Wiper Intermittent Control Unit, Rear Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
