DRL Control Unit (Canada) Connector End View

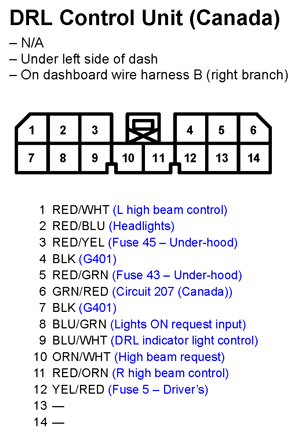

Fig 1: DRL Control Unit (Canada) Connector End View

G11248227

Courtesy of AMERICAN HONDA MOTOR CO., INC.
