Back-up Sensor Control Unit (Acura Accessory) Connector End View
Back-up Sensor Control Unit (Acura Accessory) Connector End View

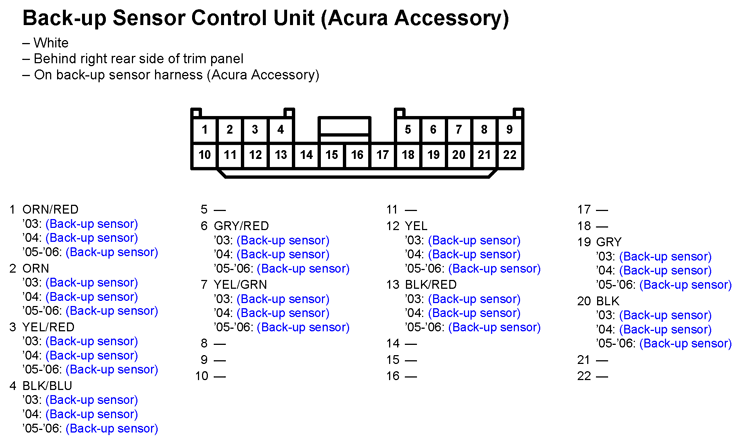

Fig 1: Back-up Sensor Control Unit (Acura Accessory) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
