Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System
>>
Component Location Index
>>
Notes
Component Location Index: Notes

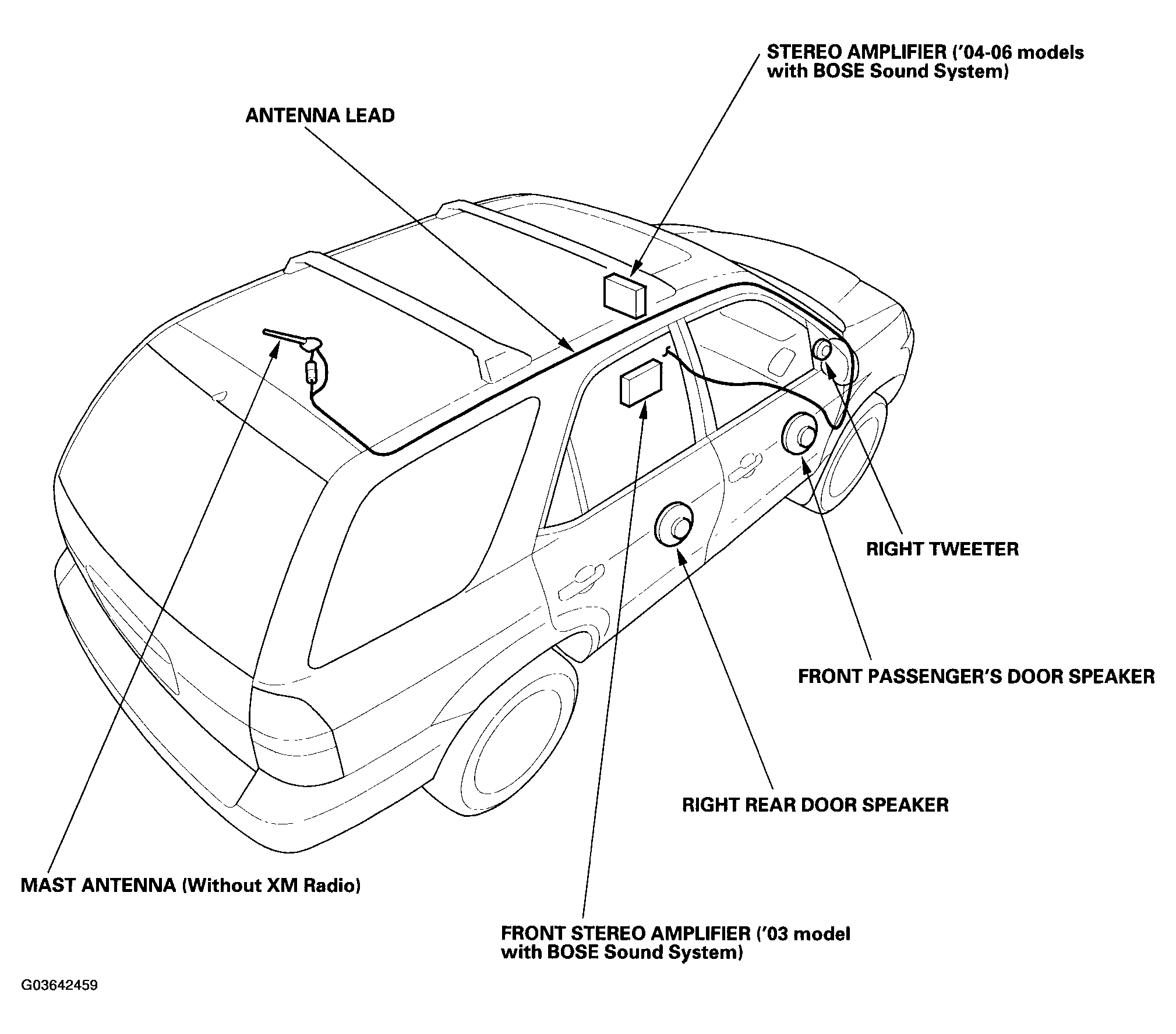

Fig 1: Identifying Audio System Components Location (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

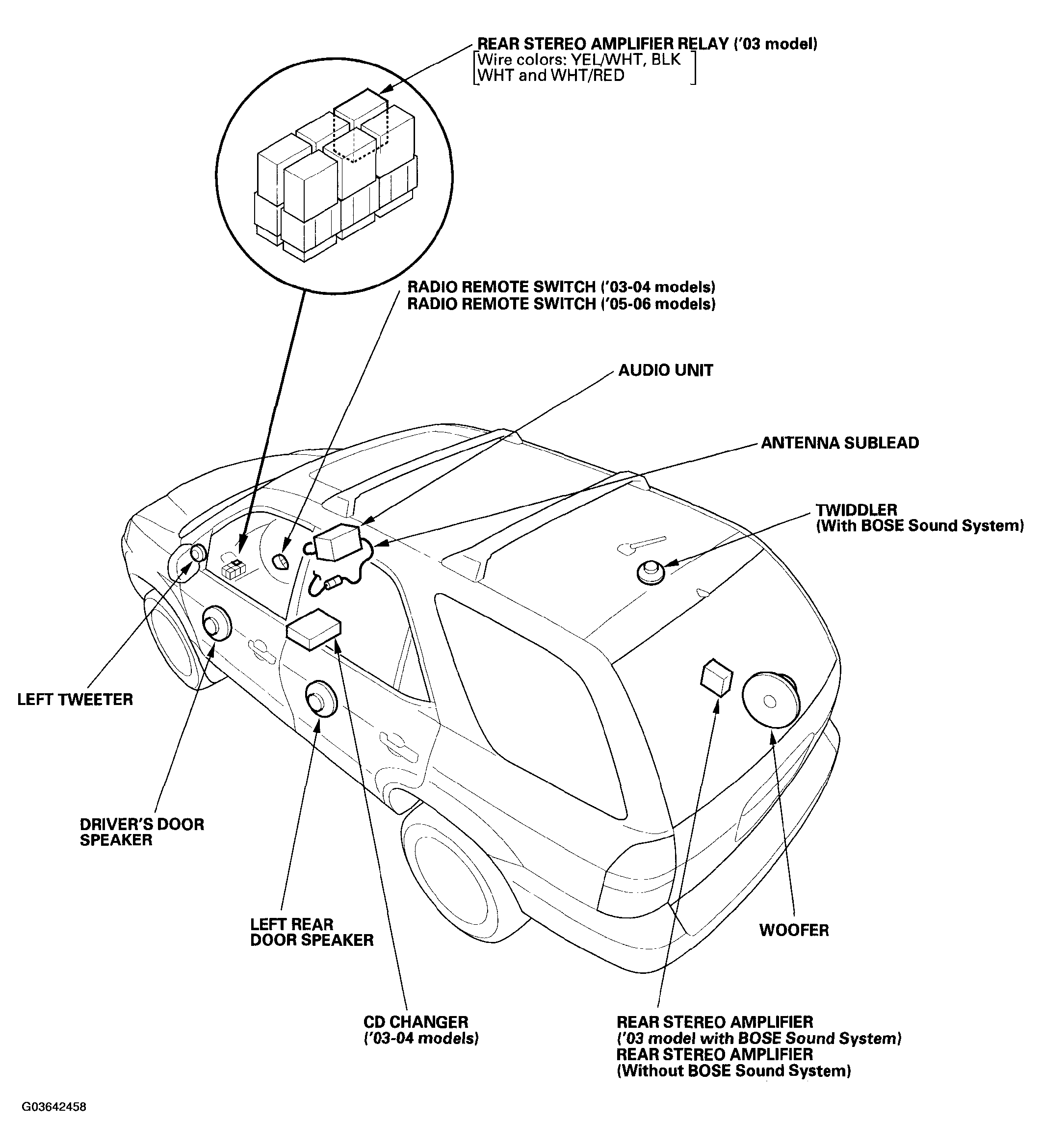

Fig 2: Identifying Audio System Components Location (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
