Accumulator Body: Reassembly

Coat all components and bores with ATF. To reassemble, reverse disassembly procedure using NEW "O" rings.

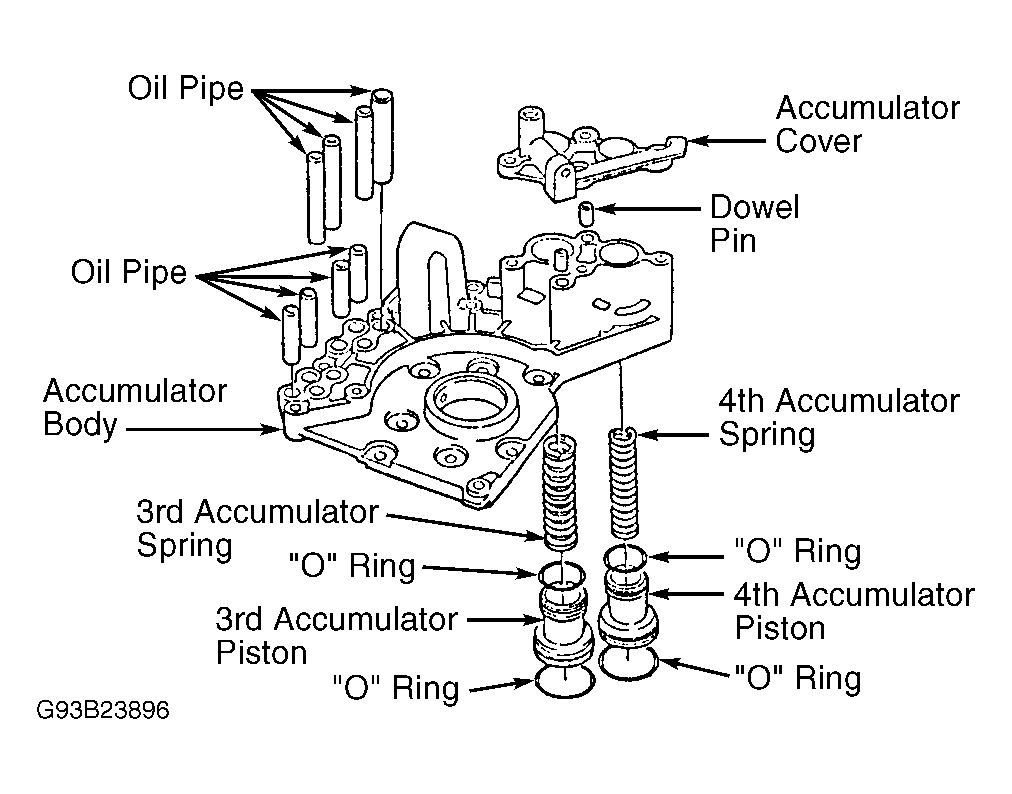

Fig 1: Exploded View Of Accumulator Body

Courtesy of AMERICAN HONDA MOTOR CO., INC.
