Home >> Acura >> 2004 >> 3.5RL >> Repair and Diagnosis >> Brakes >> Traction Control >> Vehicle Stability Assistance System >> Diagnostic Tests >> DTC 64: Sensor Power Source

DTC 64: Sensor Power Source

For DTC testing flow chart, see Fig 1 .

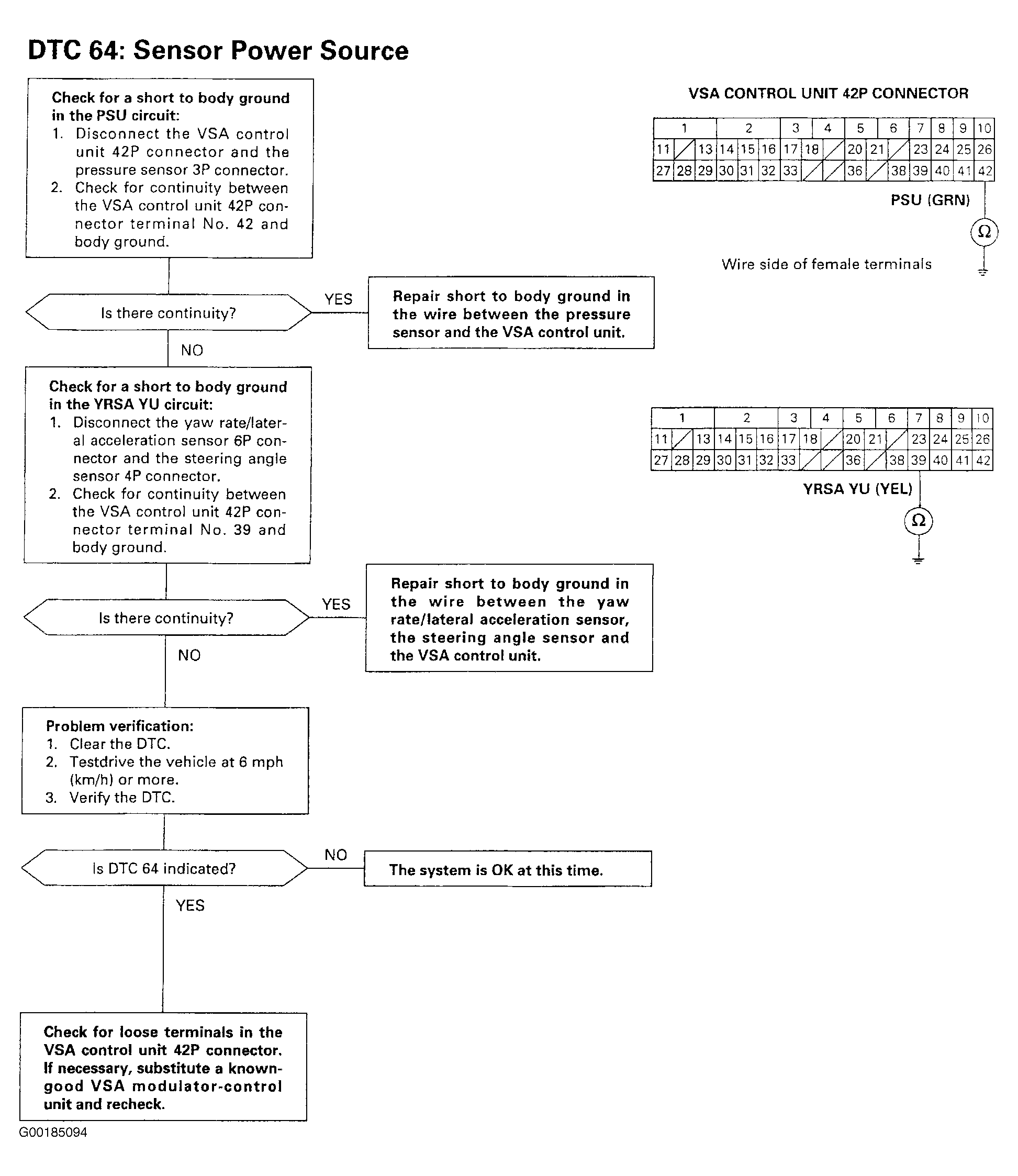

Fig 1: DTC 64: Sensor Power Source Testing Flow Char

G00185094

Courtesy of AMERICAN HONDA MOTOR CO., INC.
