Circuit Diagram

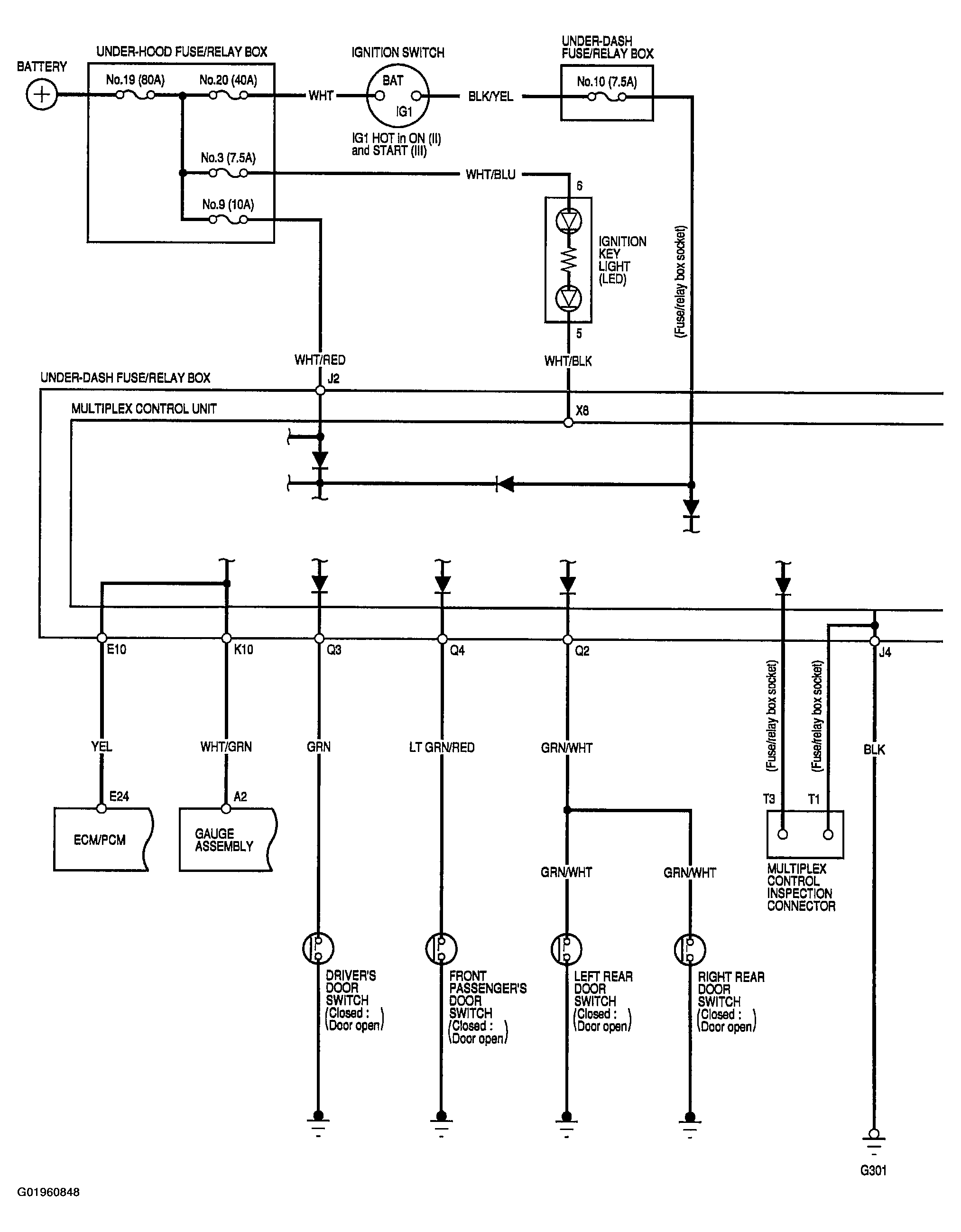

Fig 1: Multiplex Control System Circuit Diagram (1 Of 2)

G01960848

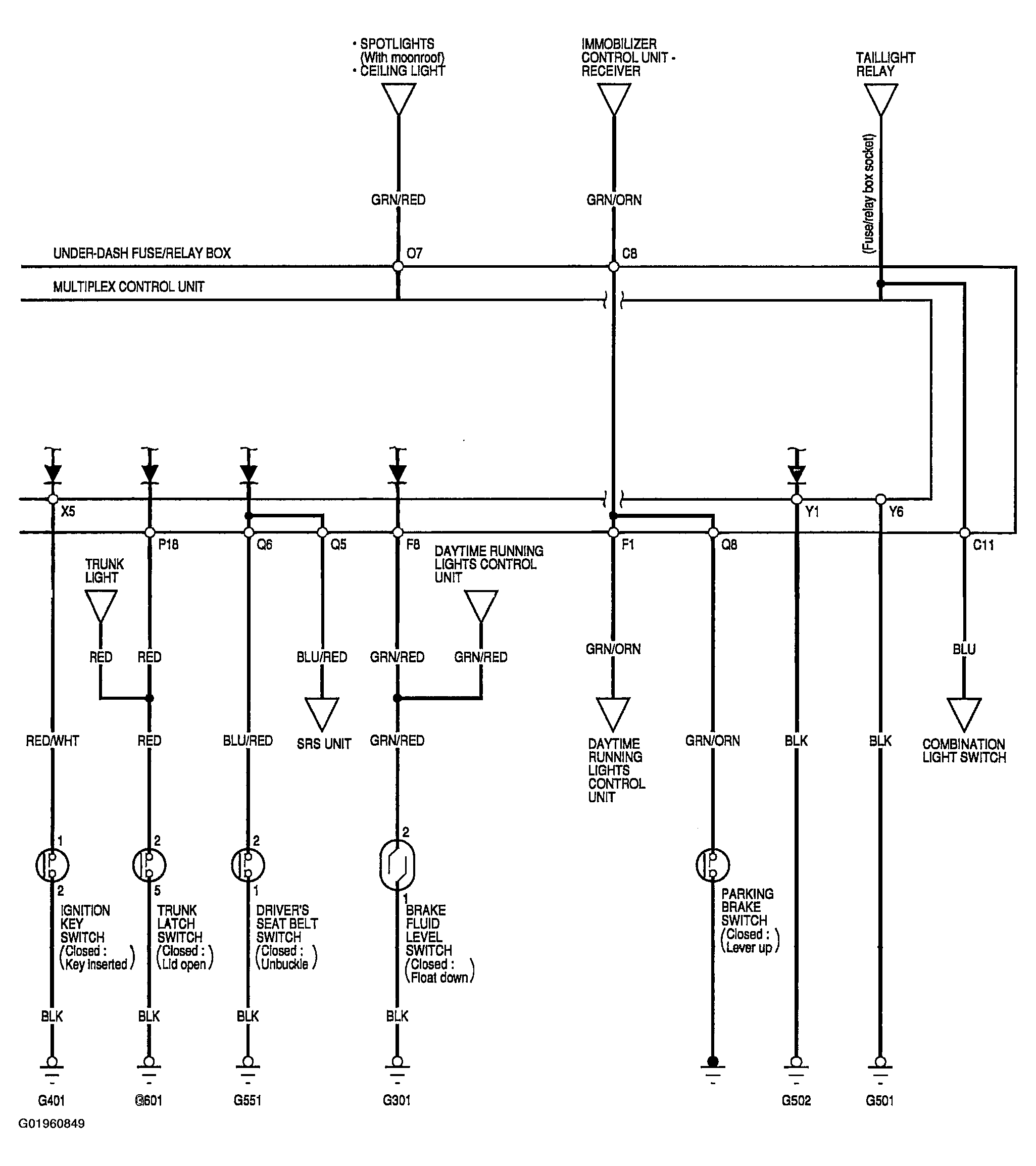

Fig 2: Multiplex Control System Circuit Diagram (2 Of 2)

G01960849
