Engine Mount Replacement

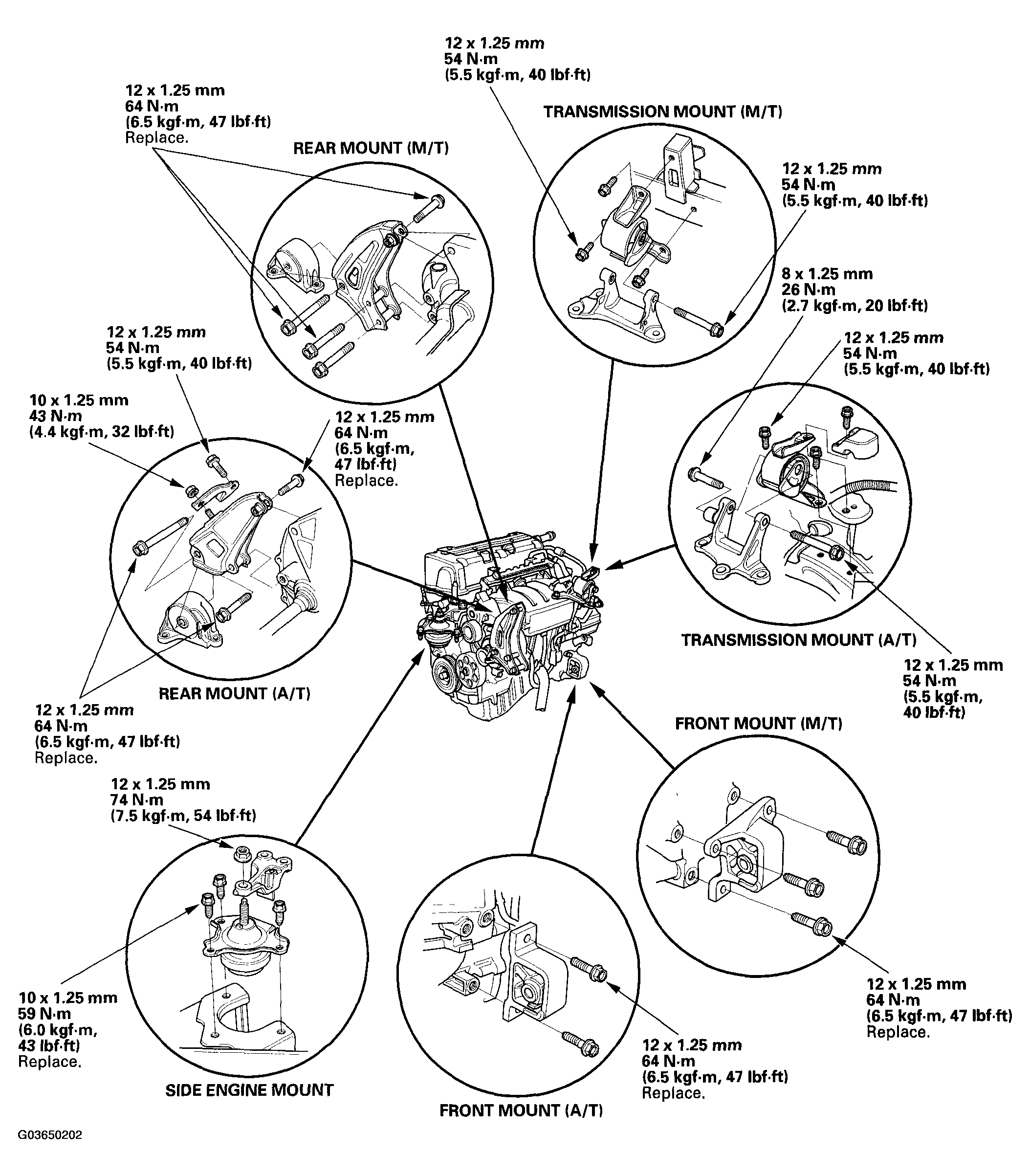

Fig 1: Engine Mount Replacement And Torque Specifications

G03650202

Courtesy of AMERICAN HONDA MOTOR CO., INC.
