Piston, Pin, and Connecting Rod Replacement: Reassembly

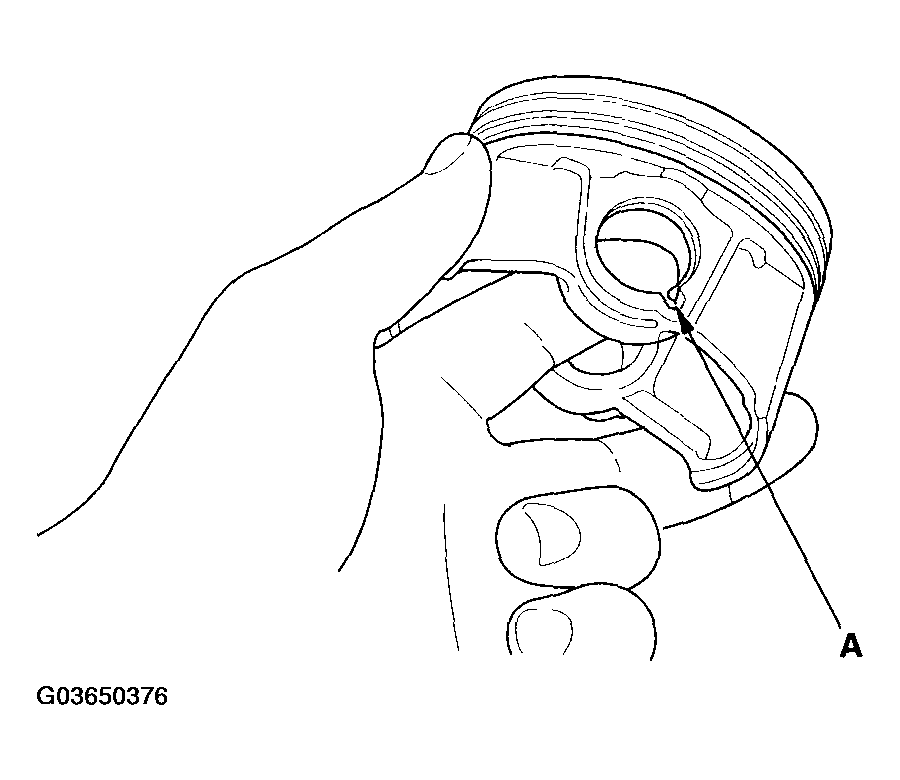

Install a piston pin snap ring (A) only on one side.

Fig 1: Installing Piston Pin Snap Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Coat the piston pin bore in the piston, the bore in the connecting rod, and the piston pin with engine oil.
Heat the piston to about 158°F (70°C).

Fig 2: Heating Piston
Courtesy of AMERICAN HONDA MOTOR CO., INC.

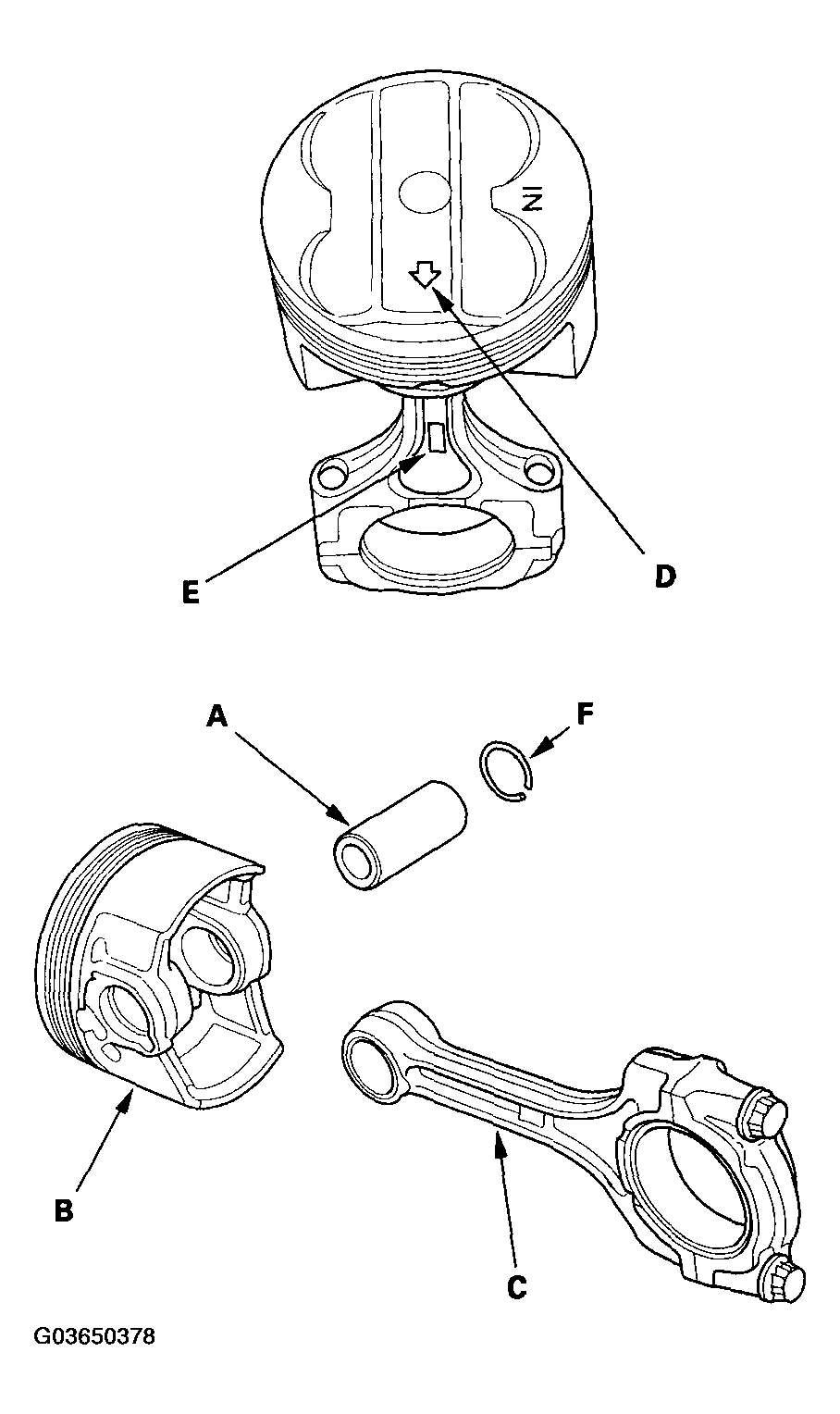

Install the piston pin (A). Assemble the piston (B) and connecting rod (C) with the arrow (D) and the embossed mark (E) on the same side.

Fig 3: Installing Piston Pin
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the remaining snap ring (F).
Turn the snap rings in the ring grooves until the end gaps are positioned at the bottom of the piston.
