Alternator Removal and Installation: Installation

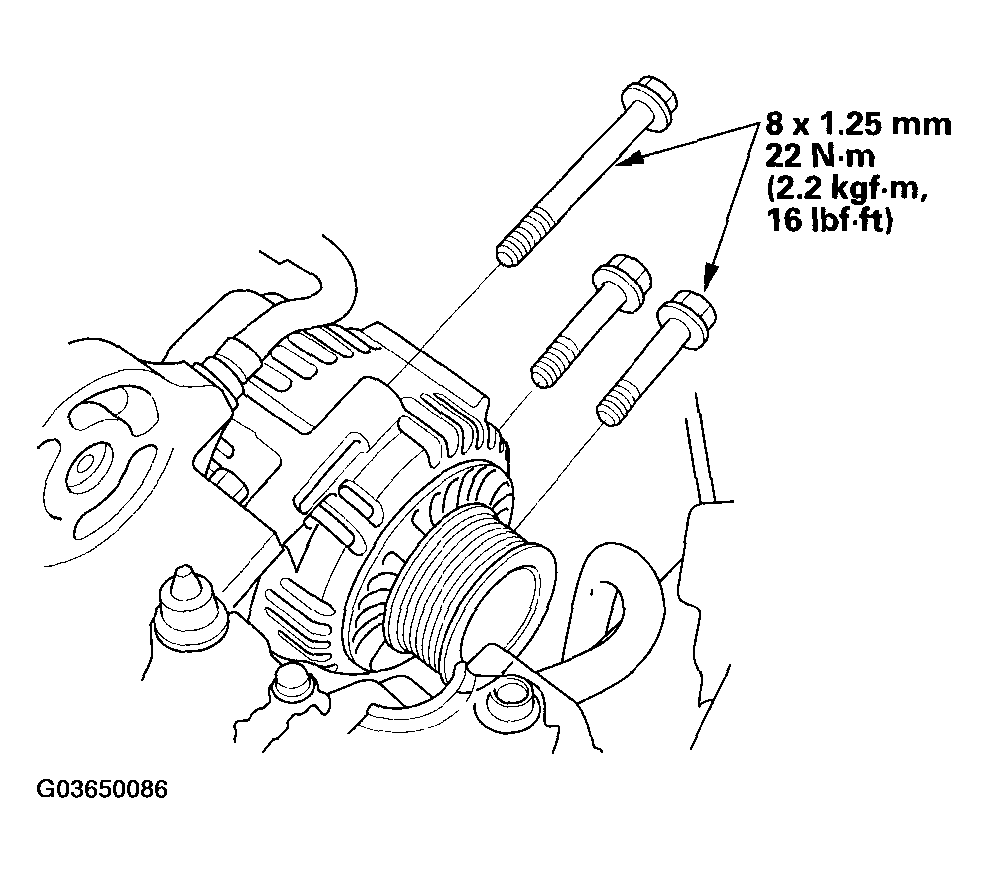

- Install the three bolts securing the alternator.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

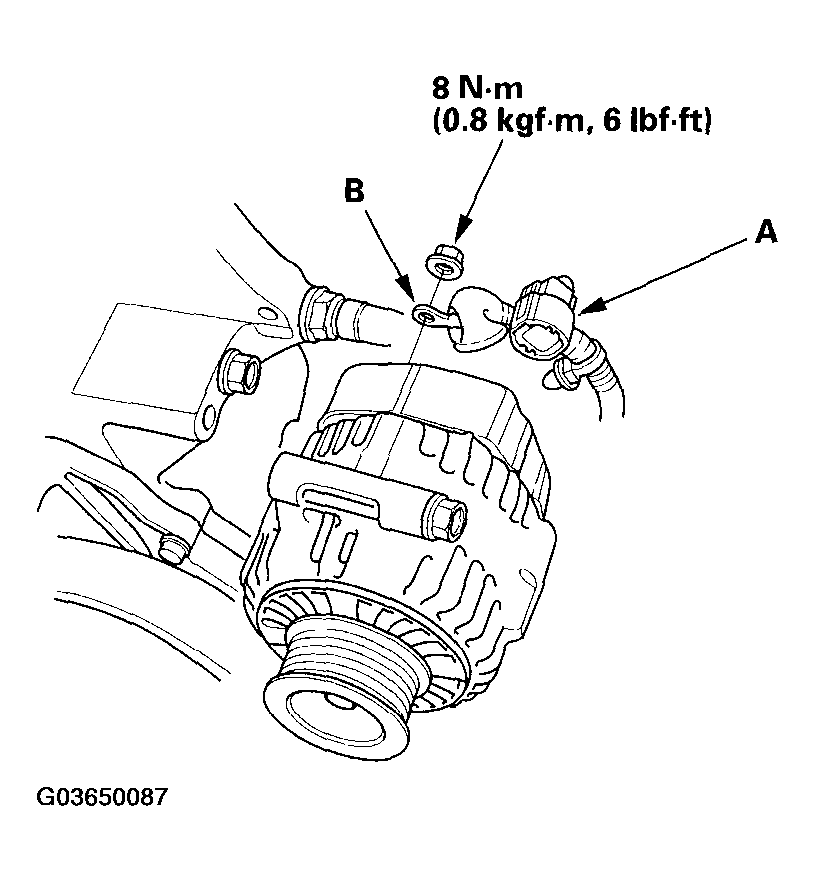

- Connect the alternator connector (A) and BLK wire (B) from the alternator.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the auto-tensioner (see DRIVE BELT AUTO-TENSIONER REPLACEMENT
).
- Install the drive belt (see DRIVE BELT INSPECTION
).
- Connect the positive cable to the battery first, then the connect negative cable.
- Enter the anti-theft codes for the radio, then enter the customer's radio station presets.
- Set the clock.
- Do the engine control module (ECM)/powertrain control module (PCM) idle learn procedure.
- Do the power window control unit reset procedure (see
RESETTING THE POWER WINDOW CONTROL UNIT
).
