Exploded View - K20A3 Engine

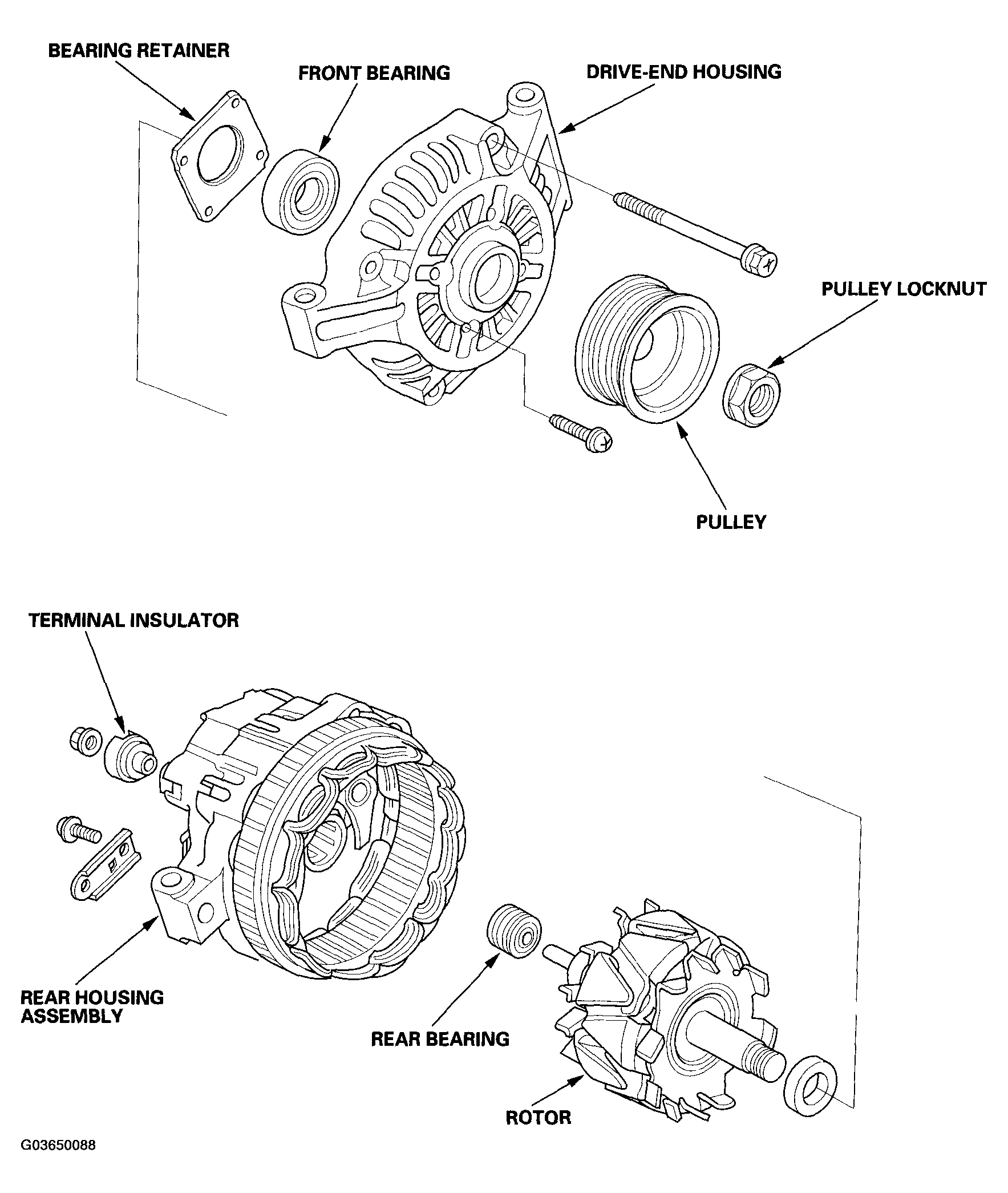

Fig 1: Exploded View of Alternator - K20A3 Engine

G03650088

Courtesy of AMERICAN HONDA MOTOR CO., INC.
