ABS Modulator-Control Unit (Except Canada Base) Connector End View

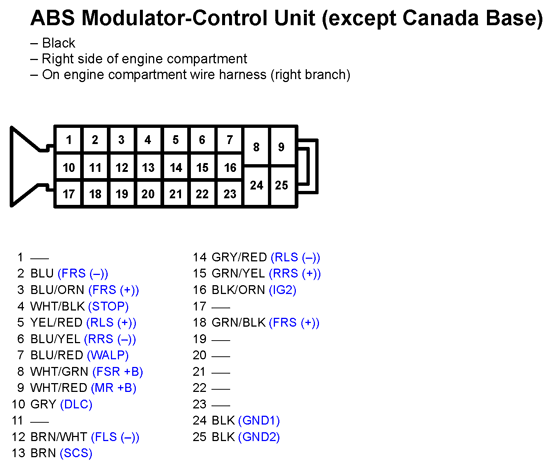

Fig 1: ABS Modulator-Control Unit (Except Canada Base) Connector End View

G11248392

Courtesy of AMERICAN HONDA MOTOR CO., INC.
