Cruise Control Actuator/Cable Replacement

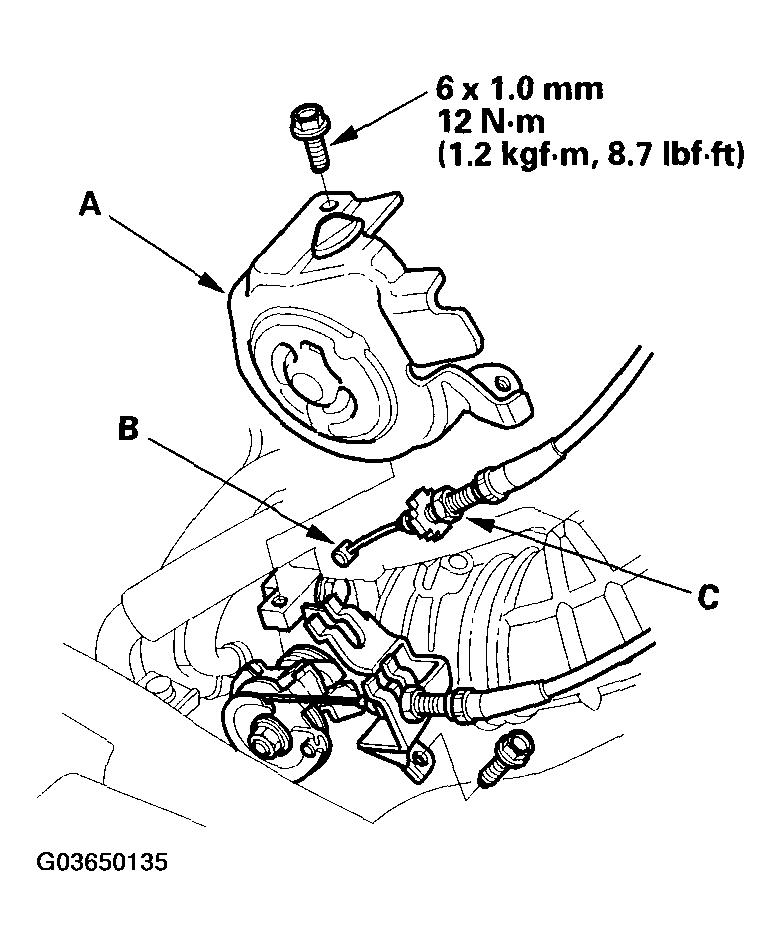

K20A3 engine: Remove the throttle cover (A), fully open the cruise control link by hand, then remove the cruise control cable (B) from link. Loosen the locknut (C), and remove the cable from the bracket.

Fig 1: Removing Cable From Bracket And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

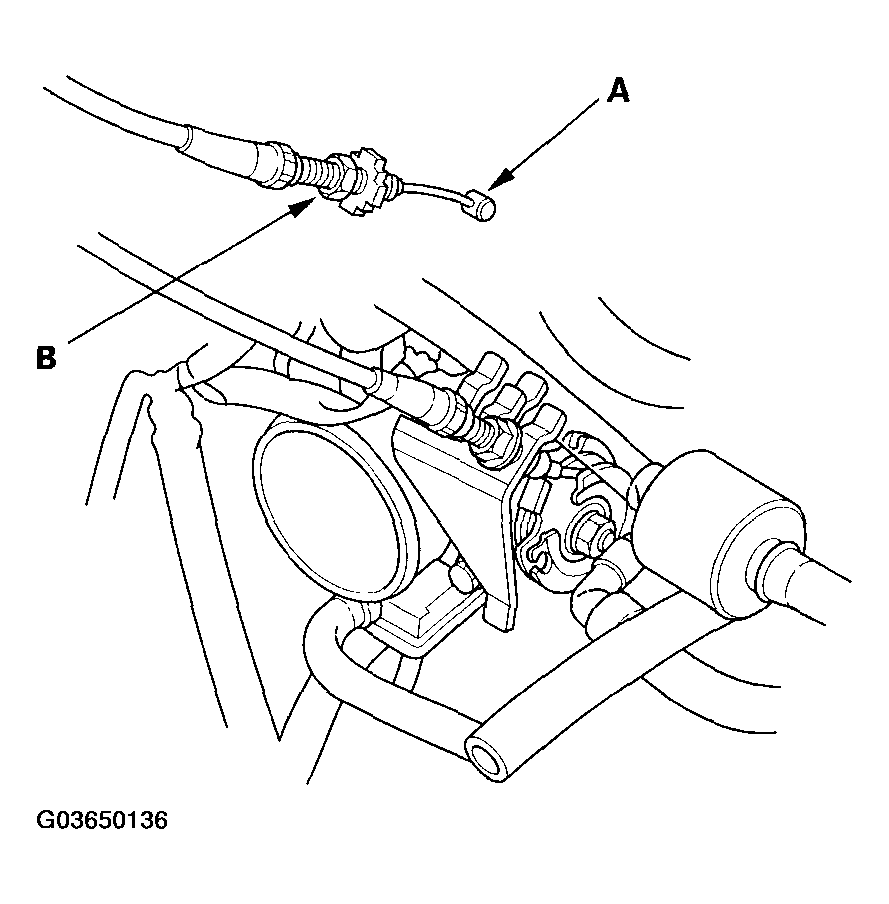

K20A2, K20Z1 engines: Fully open the cruise control link by hand, then remove the cruise control cable (A) from the link. Loosen the locknut (B), and remove the cable from the bracket.

Fig 2: Removing Cable From Bracket - K20A2, K20Z1 Engines
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the cowl cover (see COWL COVER REPLACEMENT ).

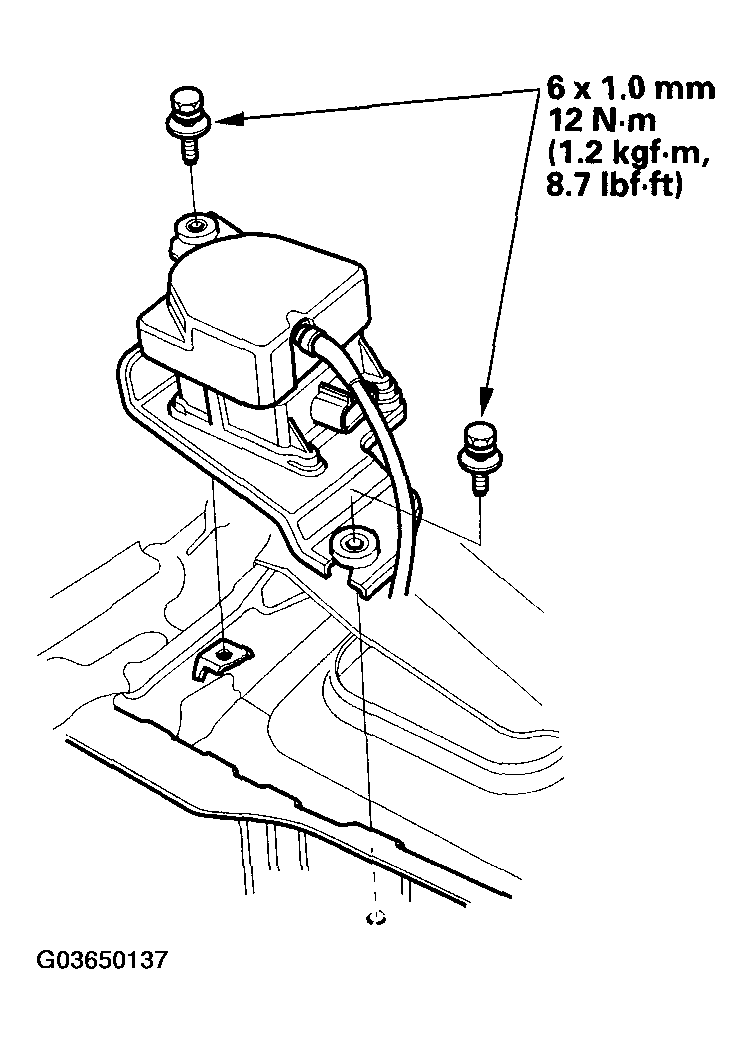

Disconnect the 4P connector, and remove the two bolts securing the cruise control actuator.

Fig 3: Removing Bolts Securing Cruise Control Actuator And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

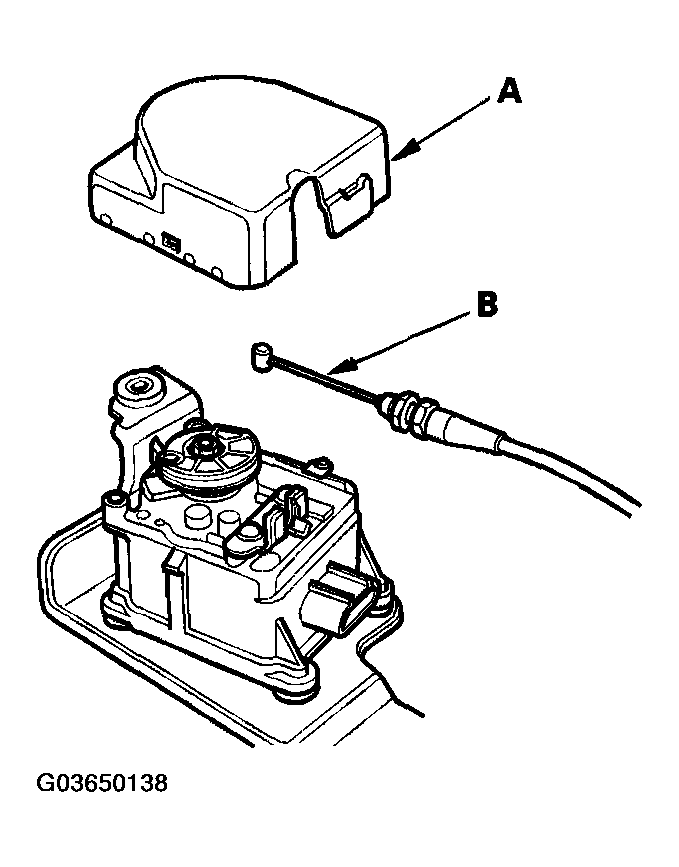

Remove the actuator cover (A), then remove the actuator cable (B) from the cruise control actuator.

Fig 4: Removing Actuator Cable From Cruise Control Actuator
Courtesy of AMERICAN HONDA MOTOR CO., INC.

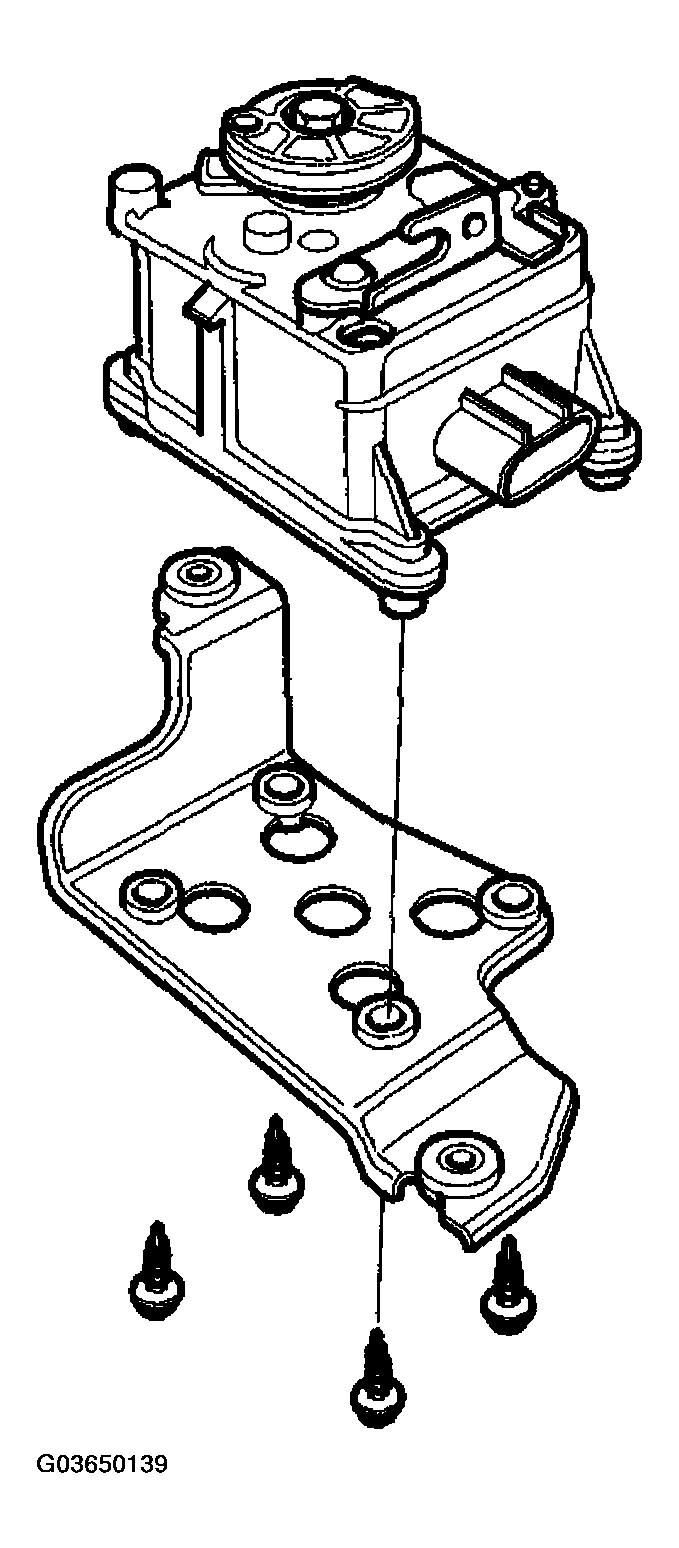

Remove the bracket from the cruise control actuator.

Fig 5: Removing Bracket From Cruise Control Actuator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal, and adjust the free play at the throttle linkage after connecting the actuator cable.
