Subframe Torque

After loosening the subframe mounting bolts, be sure to replace them with new ones.

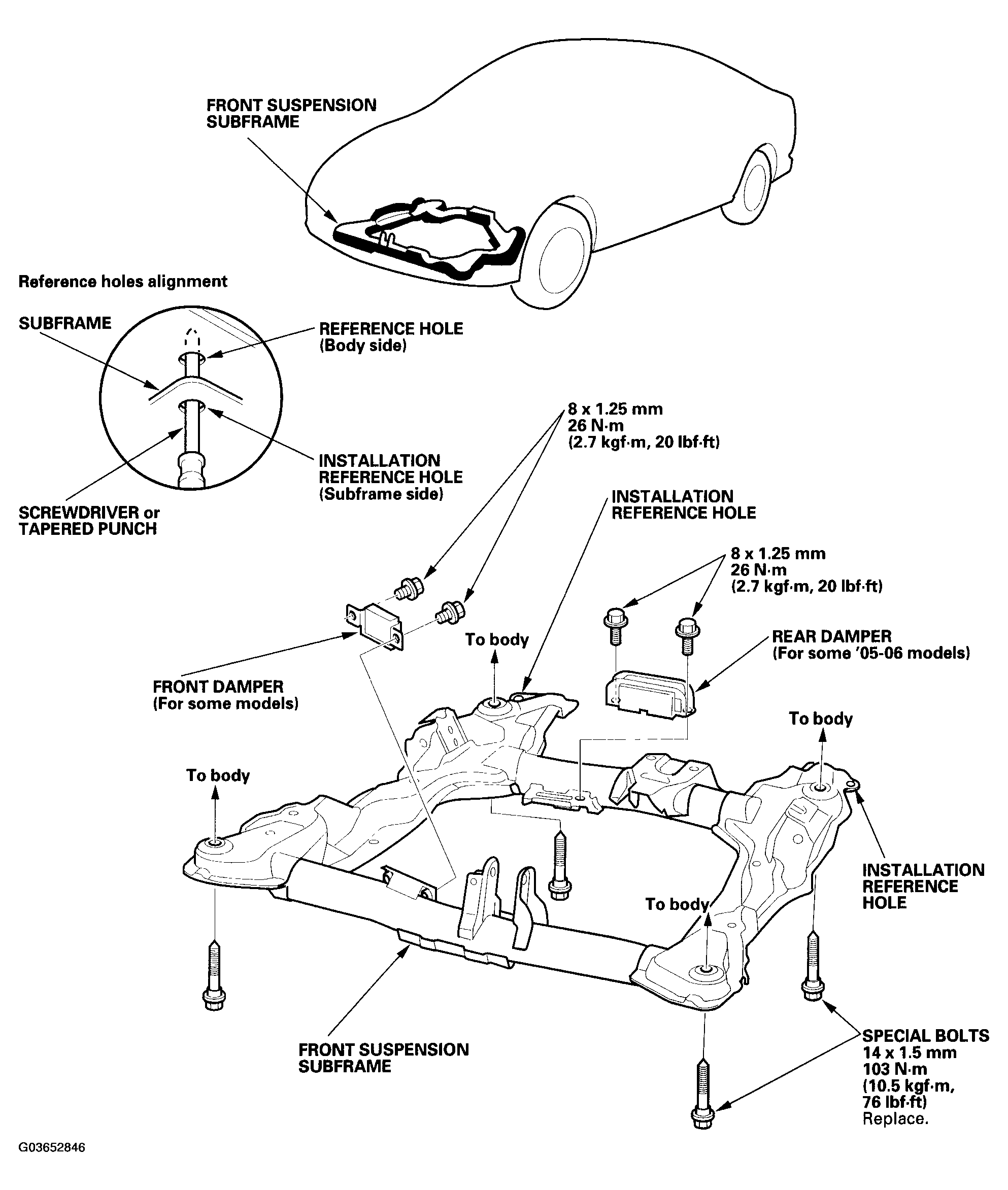

Fig 1: Subframe Replacement Components Torque Specification
G03652846Courtesy of AMERICAN HONDA MOTOR CO., INC.
