Selector Control Shaft Bearing Replacement

Special Tools Required

• Driver 07749-0010000
• Attachment, 22 x 24 mm 07746-0010800

1. Remove the oil seal from the end cover, then remove the bearing.
   Fig 1: Removing Oil Seal From End Cover

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the new bearing flush to the end cover with the special tools.

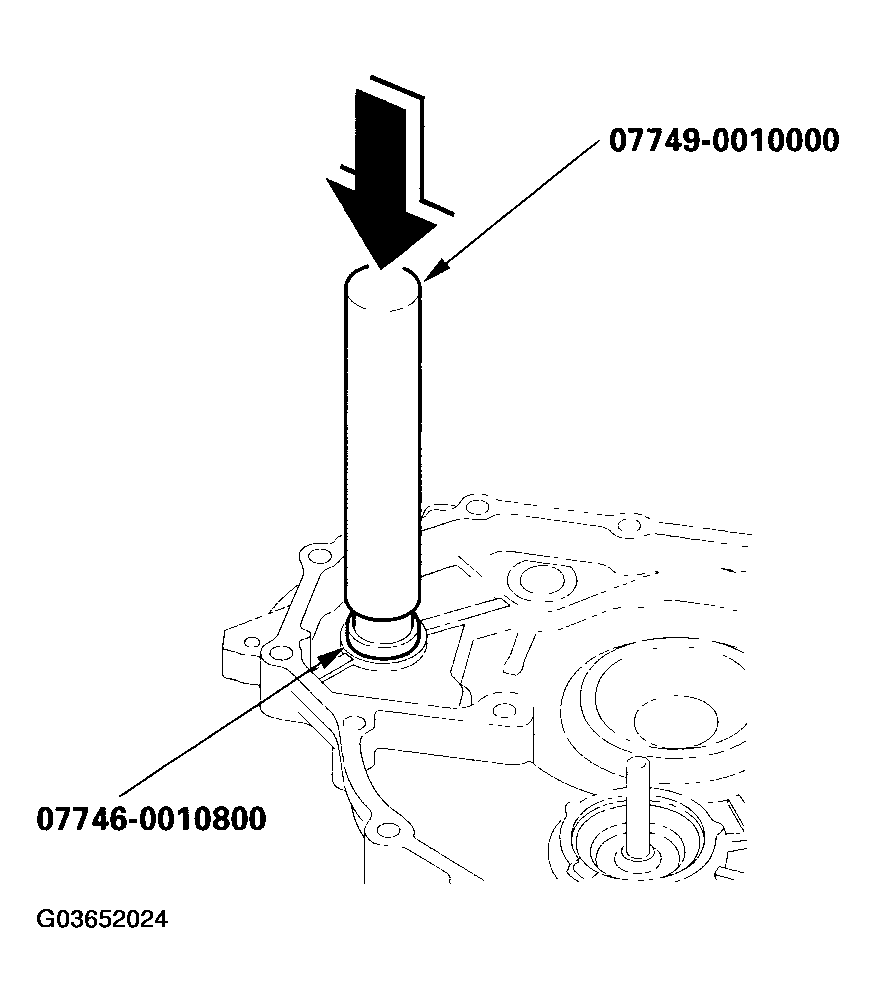

   Fig 2: Installing New Bearing Flush To End Cover

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the new oil seal (see IDLER GEAR SHAFT BEARING REPLACEMENT  ).
