Drive Plate Removal and Installation

  1. Remove the transmission assembly (see TRANSMISSION REMOVAL  ).
  2. Remove the drive plate (A) and washer (B) from the crankshaft.

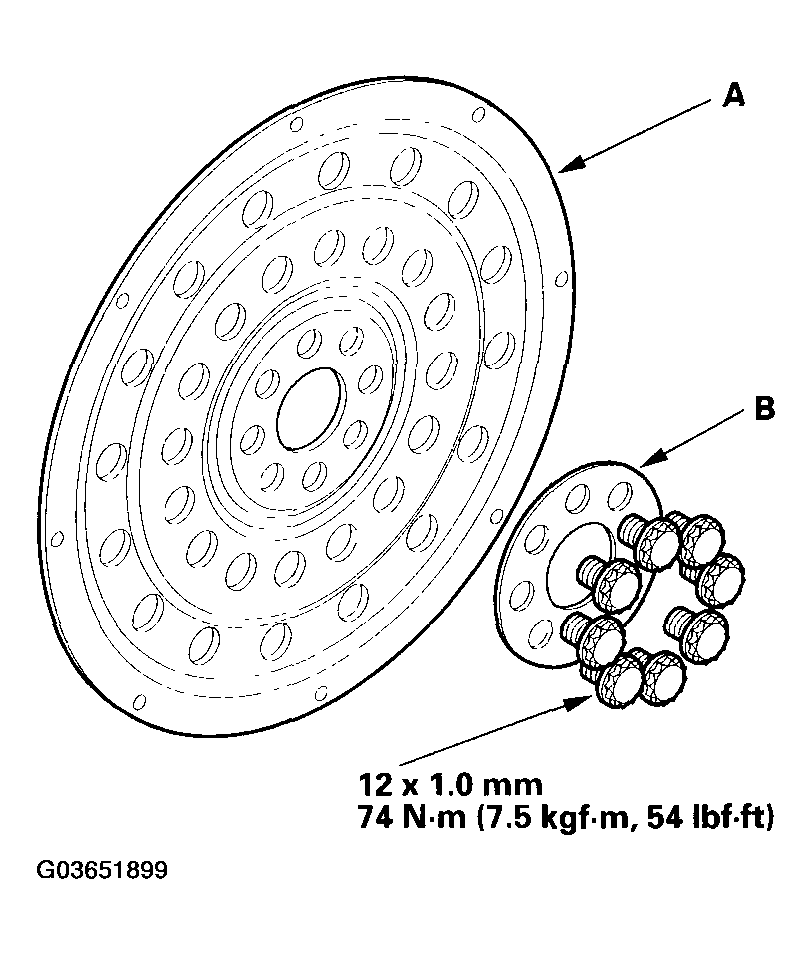

    Fig 1: Removing Drive Plate And Washer From Crankshaft With Specified Torques
    G03651899Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the drive plate and washer on the engine crankshaft, and tighten the eight bolts in a crisscross pattern in two or more steps.
  4. Install the transmission (see TRANSMISSION INSTALLATION  ).
