Outside Air Temperature Sensor Replacement

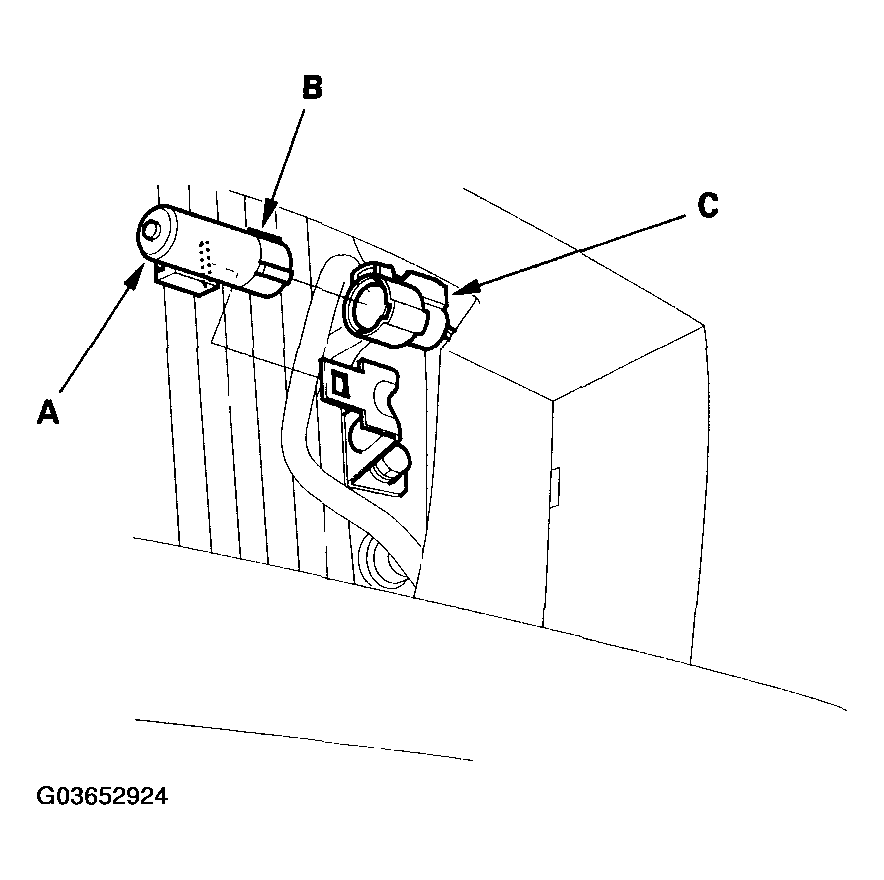

  1. Lift the tab (A) to release the lock, and remove the outside air temperature sensor (B), then disconnect the 2P connector (C).
    Fig 1: Lifting Tab To Release Lock
    G03652924Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the sensor in the reverse order of removal.
