'03 model:

WARNING: This page is about a different car, the 2003 Acura 3.2CL, 2002 Acura 3.2CL, and 2001 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.

When replacing an unit connector, match the wires to the cavities as listed in the following table.

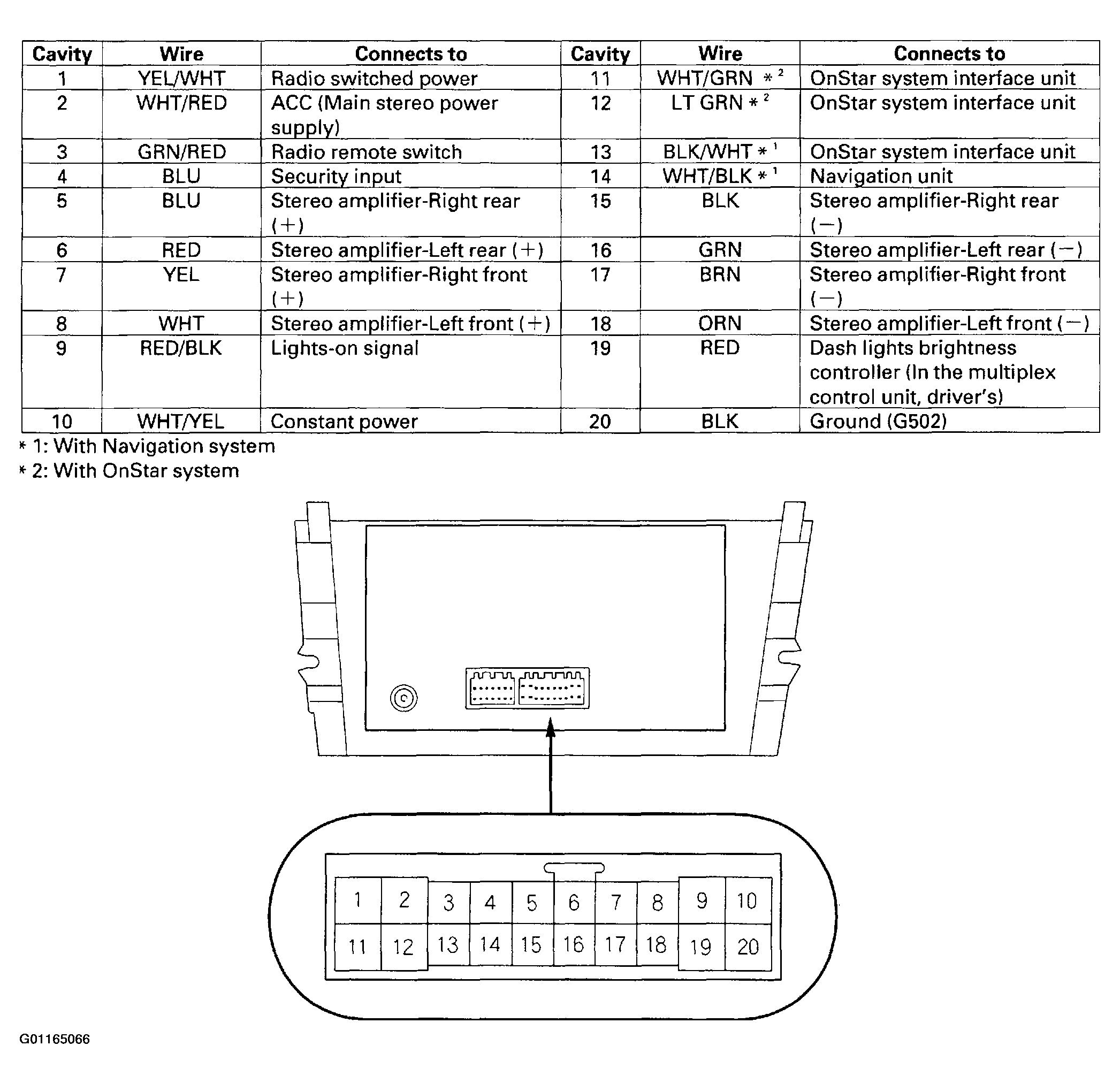

Fig 1: Replacing Audio Unit Connector ('03 model)
G01165066Courtesy of AMERICAN HONDA MOTOR CO., INC.
