PCM Inputs and Outputs at Connector C (22P)* 1-2002-2004 Models

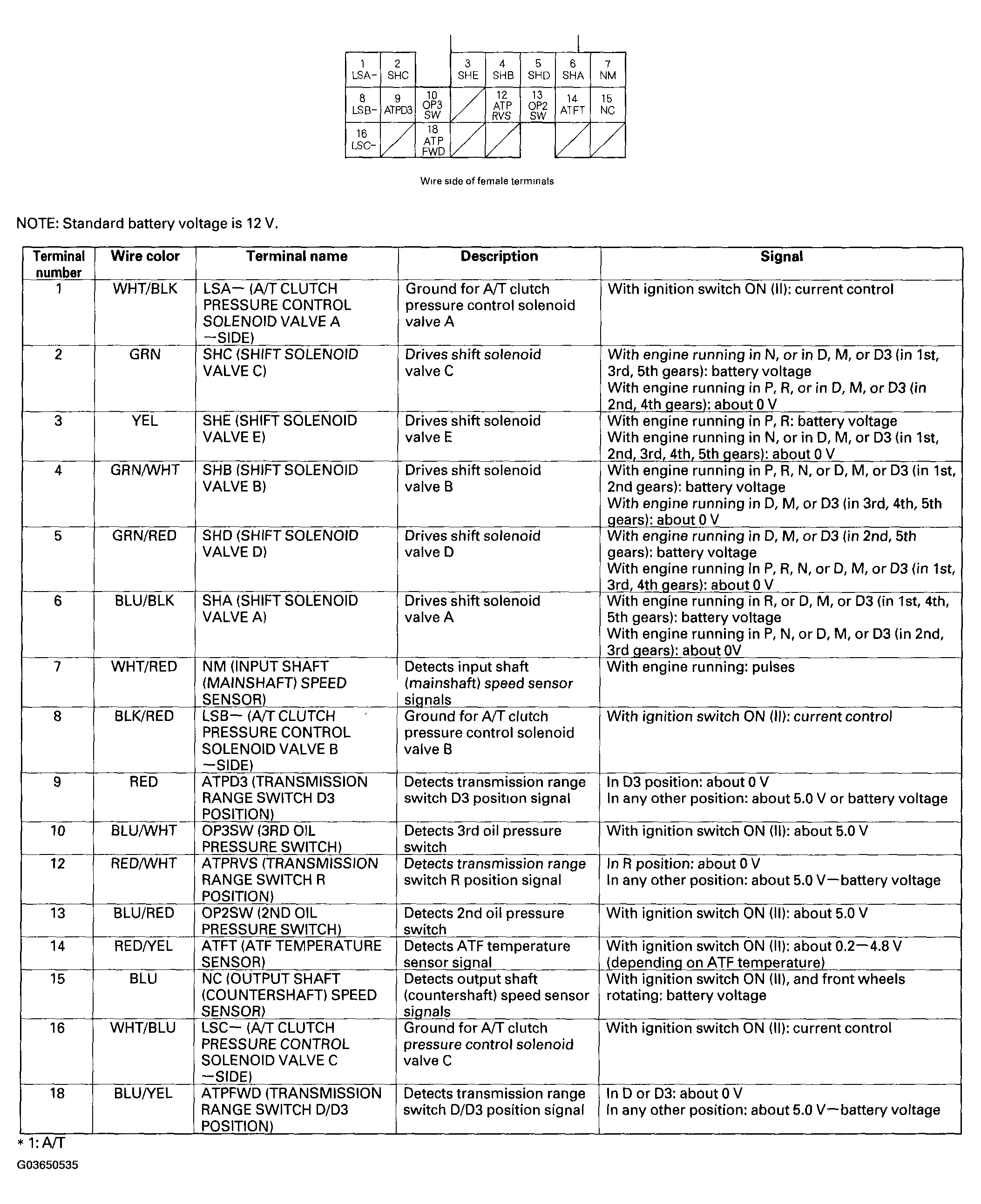

Fig 1: Identifying ECM\PCM Connector C (22P) And Terminal Description

G03650535

Courtesy of AMERICAN HONDA MOTOR CO., INC.
