Intake Manifold Tuning (IMT) (Intake Manifold Runner Control (IMRC)) Valve Position Sensor (K20A3 engine)

The IMT (IMRC) position sensor is a potentiometer connected to the IMT (IMRC) valve shaft. As the IMT (IMRC) valve position changes, the sensor varies the signal voltage to the ECM/PCM.

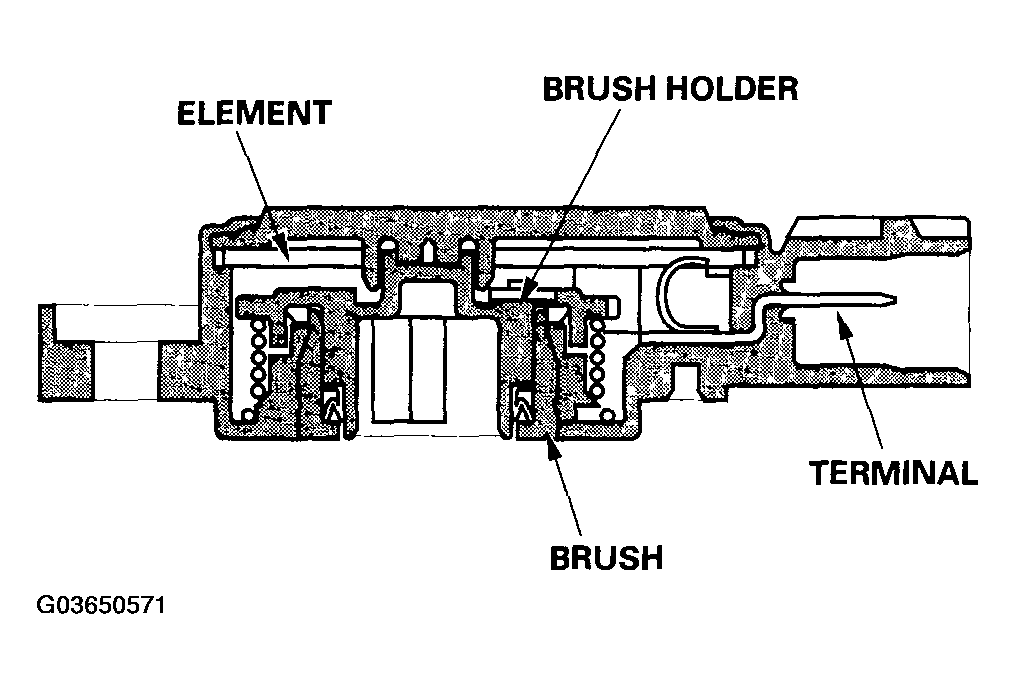

Fig 1: Identifying Terminal

Courtesy of AMERICAN HONDA MOTOR CO., INC.
