Air Cleaner Removal/Installation

  1. Remove the clamp (A) and the nuts (B).

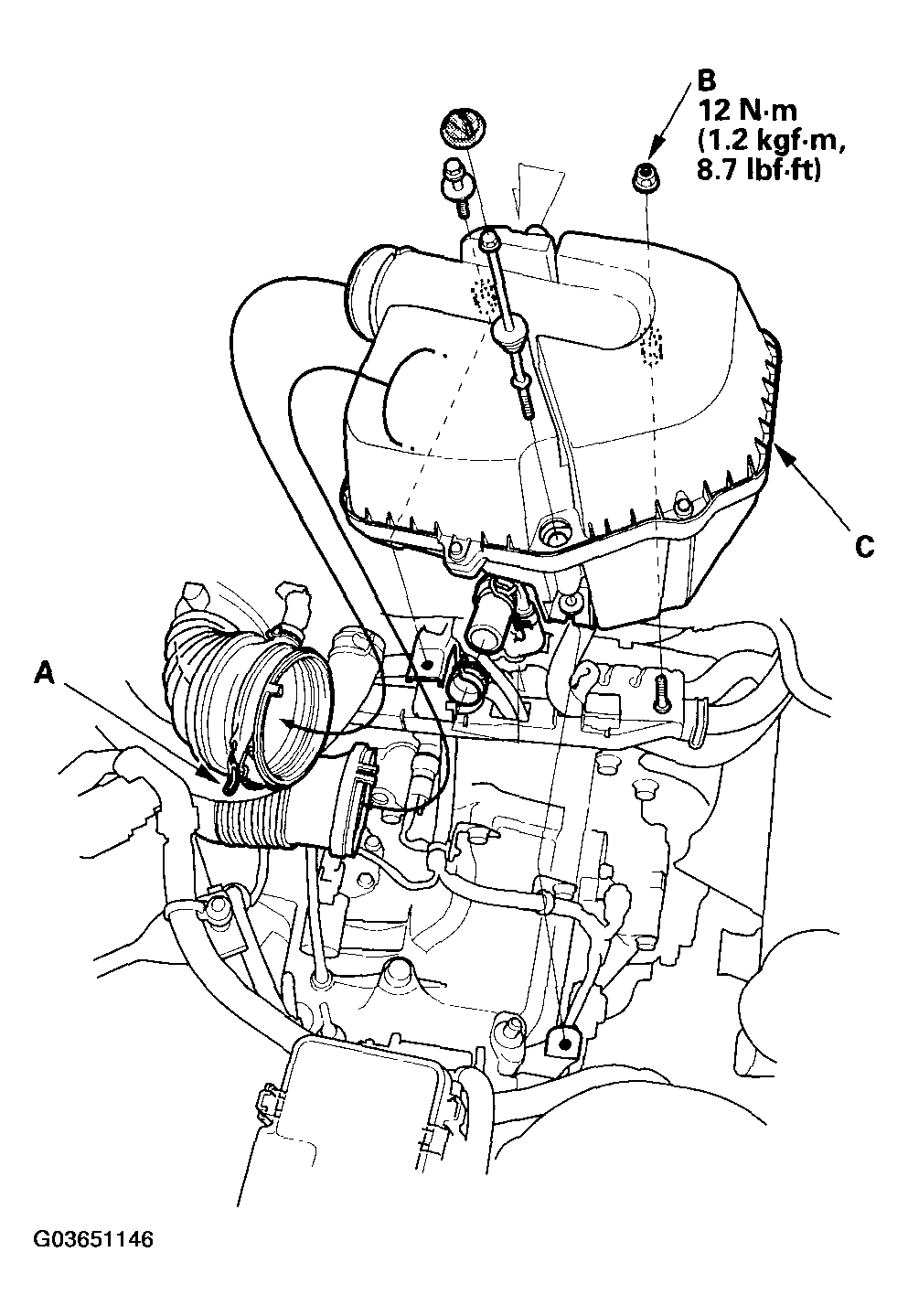

    Fig 1: Removing Clamp And Nuts With Specified Torques
    G03651146Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner (C).
  3. Install the parts in the reverse order of removal.
