Exploded View - K20A3 Engine

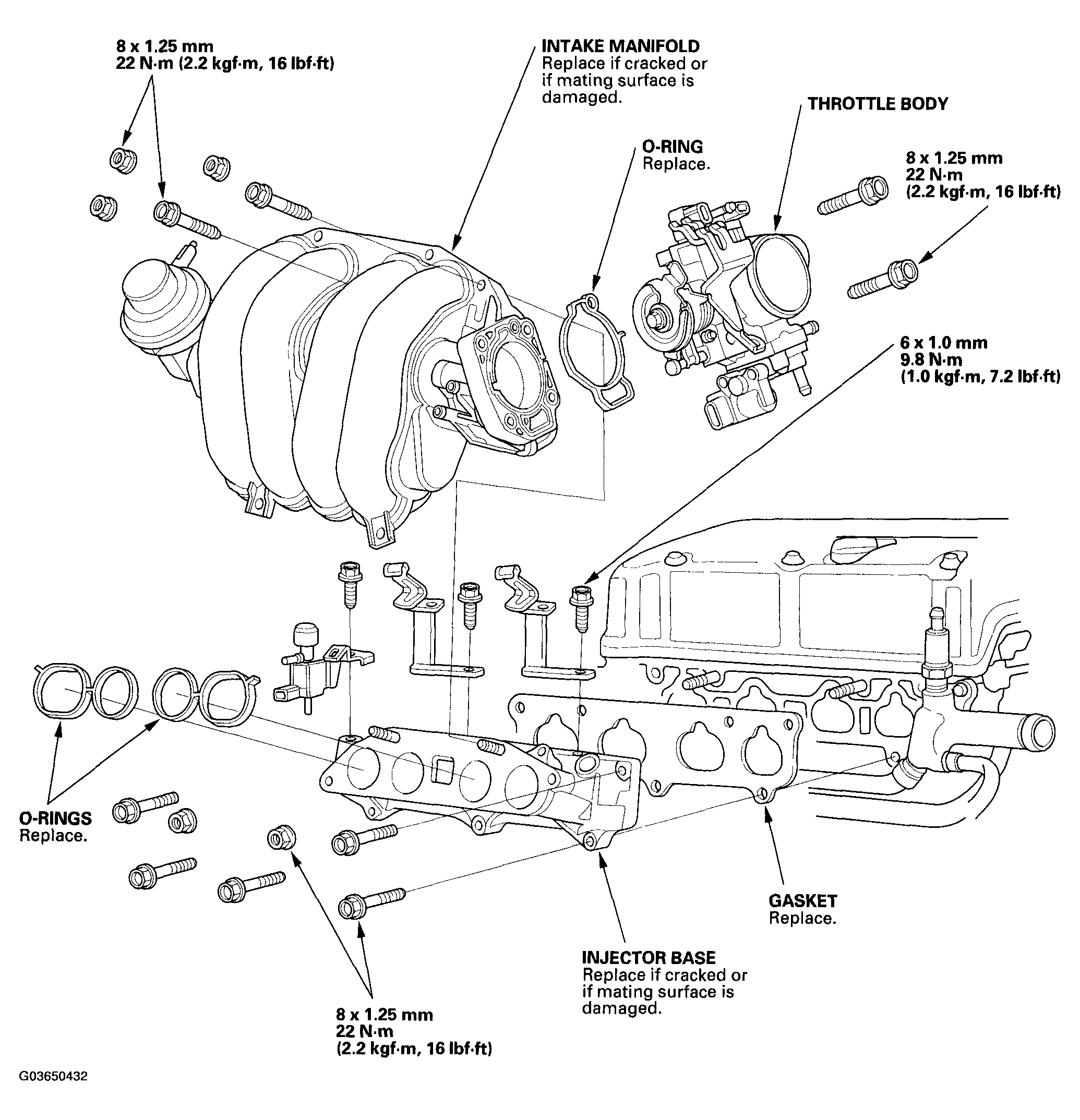

Fig 1: Exploded View Of Intake Manifold (K20A3 Engine) With Torque Specifications

G03650432

Courtesy of AMERICAN HONDA MOTOR CO., INC.
