2002-2004 models

  1. Remove the fuel tank (see FUEL TANK REPLACEMENT ).
  2. Remove the fuel tank vapor control valve (A) from the fuel tank (B).

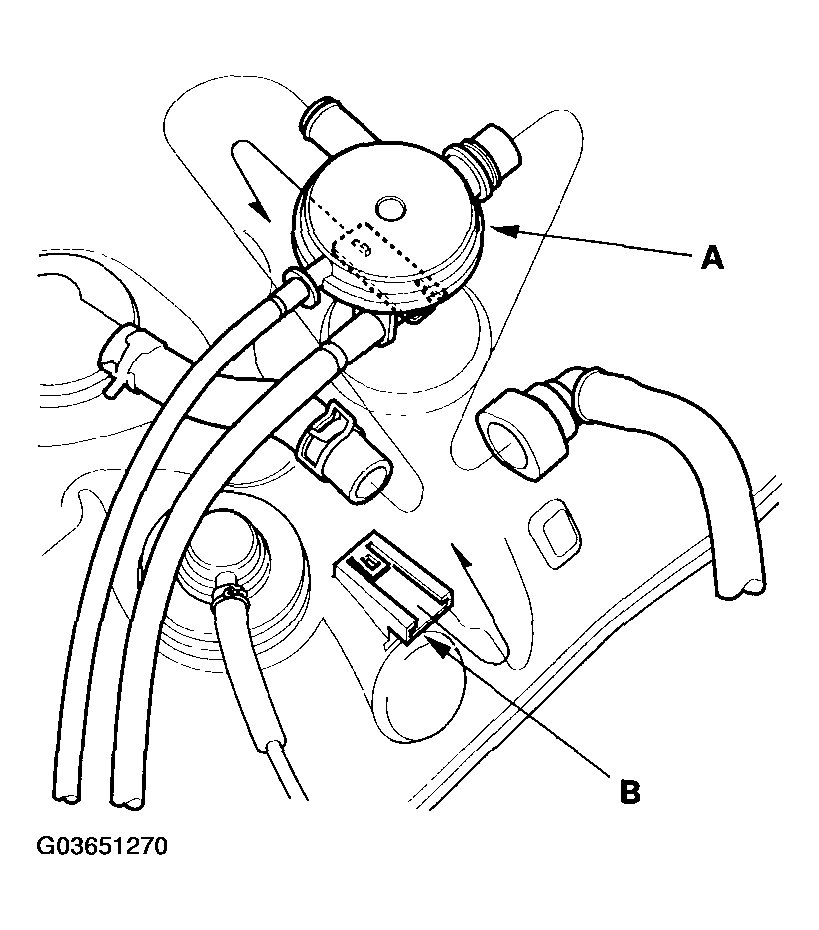

    Fig 1: Checking For Fuel In EVAP Two Way Valve
    G03651270Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the fuel tank vapor control valve.
  4. Install the fuel tank (see FUEL TANK REPLACEMENT ).
