2005-2006 models

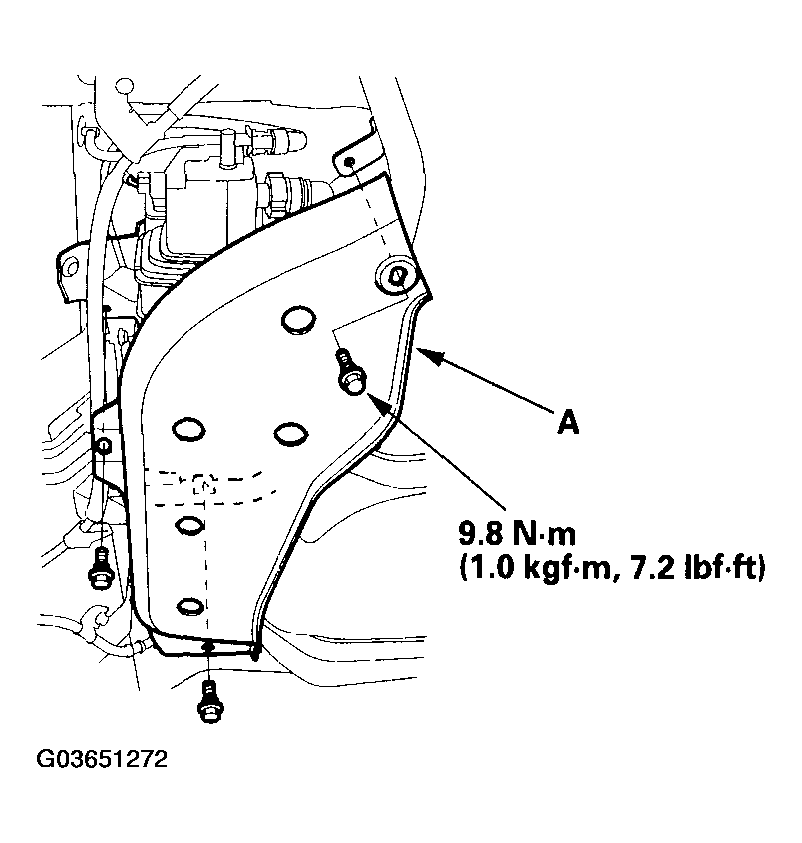

  1. Remove the EVAP canister cover (A).
    Fig 1: Removing Hoses And EVAP Canister Vent Shut Valve 2P Connector With Specified Torques
    G03651272Courtesy of AMERICAN HONDA MOTOR CO., INC.

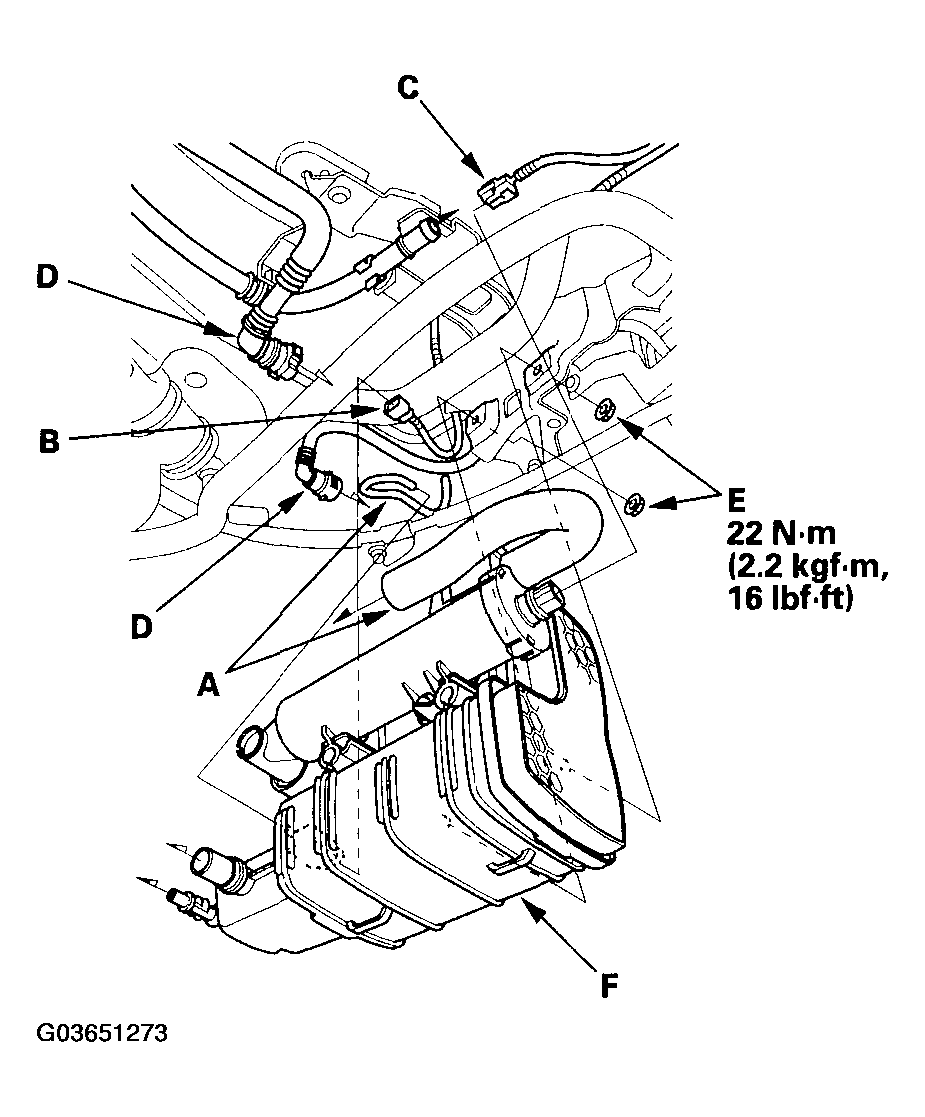

  2. Remove the hoses (A), the FTP sensor 3P connector (B), the EVAP canister vent shut valve 2P connector (C) and the quick-connect fittings (D).
    Fig 2: Removing EVAP Canister Cover And Torque Specifications
    G03651273Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the nuts (E).
  4. Remove the EVAP canister assembly (F).
  5. Install the canister in the reverse order of removal.
