Brake Pedal Position Switch Connector End View

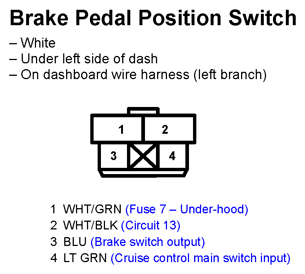

Fig 1: Brake Pedal Position Switch Connector End View

G11248382

Courtesy of AMERICAN HONDA MOTOR CO., INC.
