Disassembly/Reassembly - K20A3 Engine

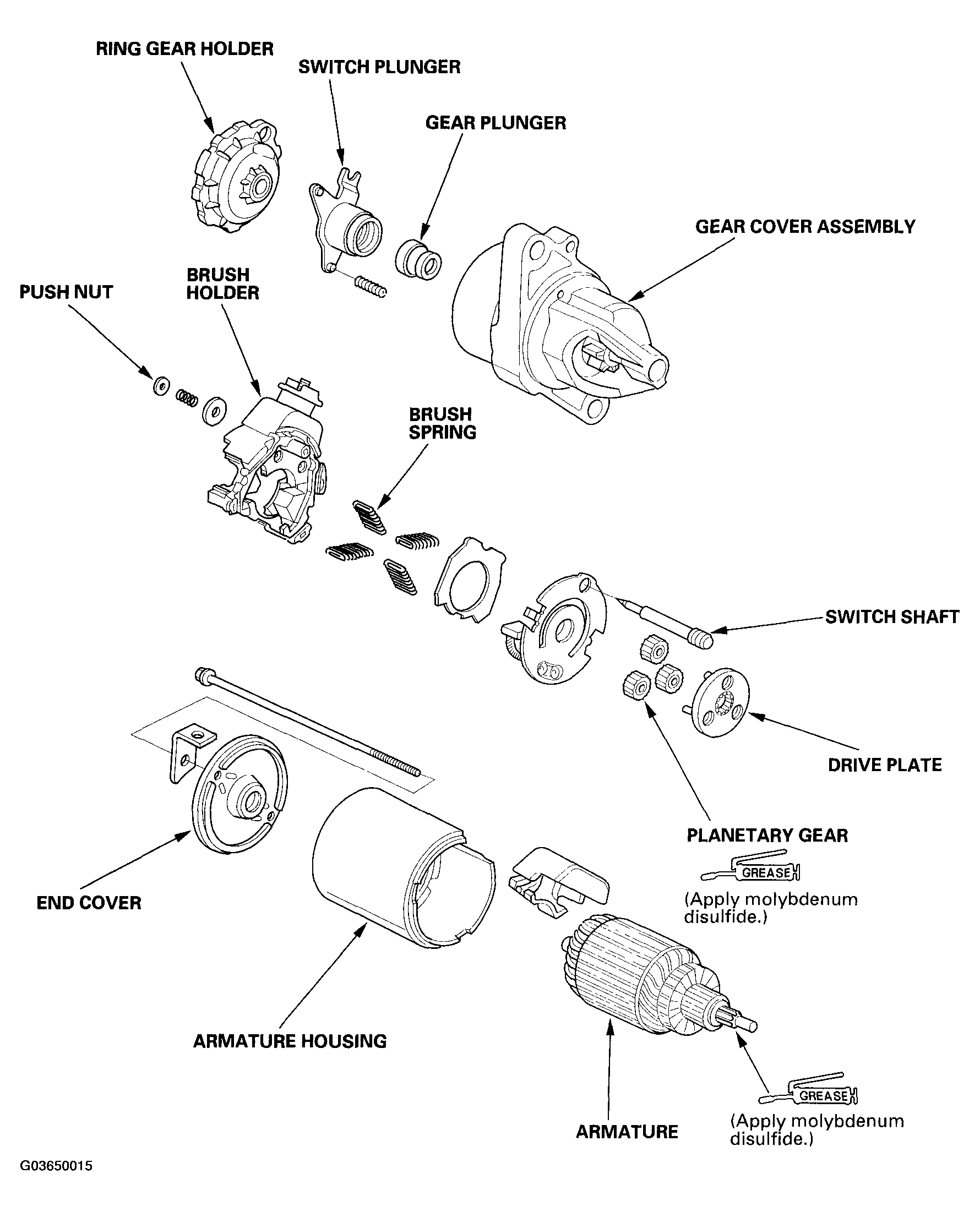

Fig 1: Exploded View Of Starter - K20A3 Engine

G03650015

Courtesy of AMERICAN HONDA MOTOR CO., INC.
