Wheel Speed and Modulator Control

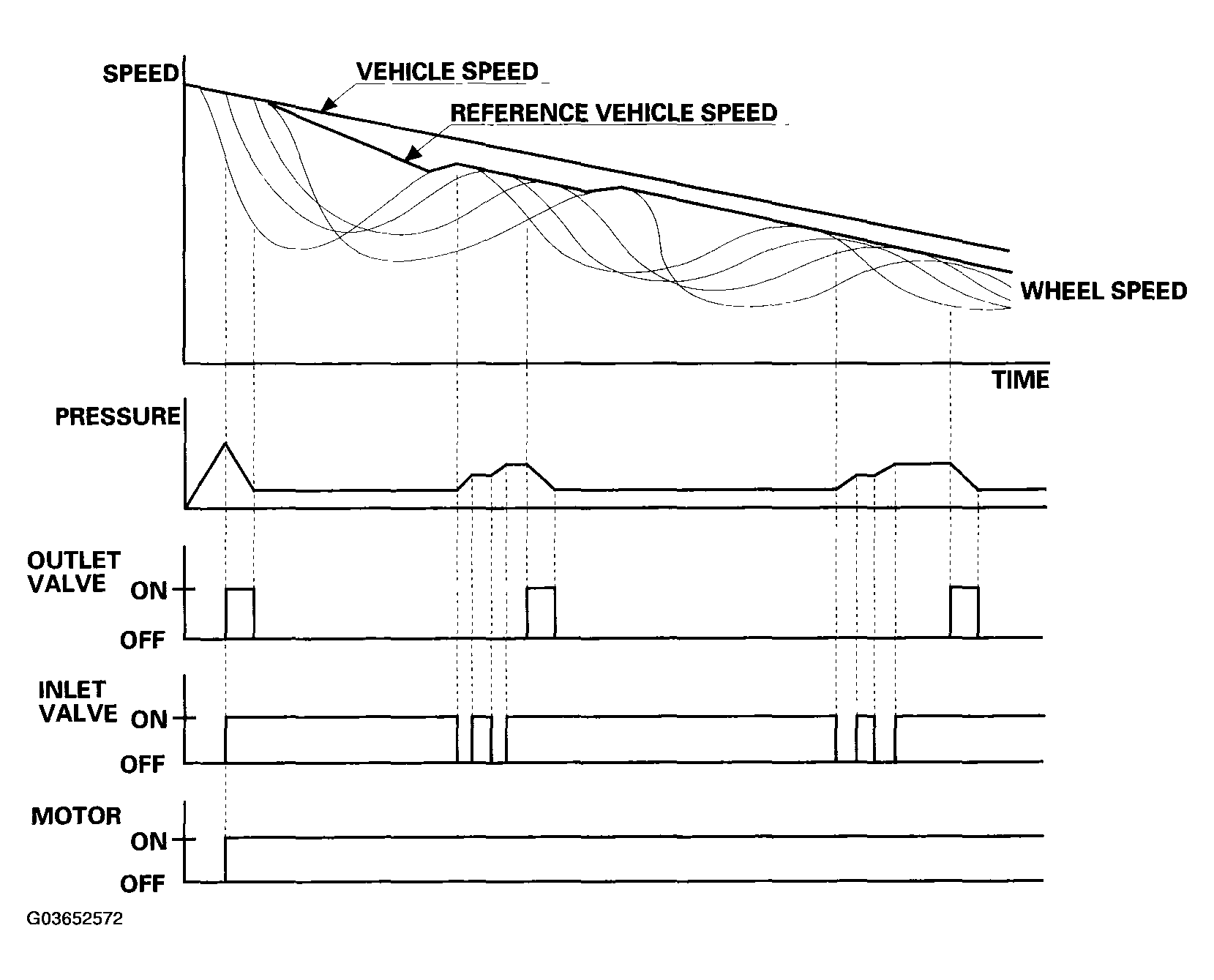

Fig 1: Identifying Wheel Speed And Modulator Control Graph

Courtesy of AMERICAN HONDA MOTOR CO., INC.

When the wheel speed drops sharply below the vehicle speed, the outlet valve opens momentarily to reduce the caliper fluid pressure. The pump motor starts at this time. As the wheel speed is restored, the inlet valve opens momentarily to increase the caliper fluid pressure.
