Center Console Box Replacement

Special Tools Required

KTC trim tool set SOJATP2014

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to scratch the center console.

Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Remove the driver's console side trim (A) and passenger's console side trim (B).
- 1 Remove the screws (C).
- 2 Detach the clips (D) and release the tabs (E).
- 3 Open the console box lid. Pull both trim pieces up to release them from the hooks (F).

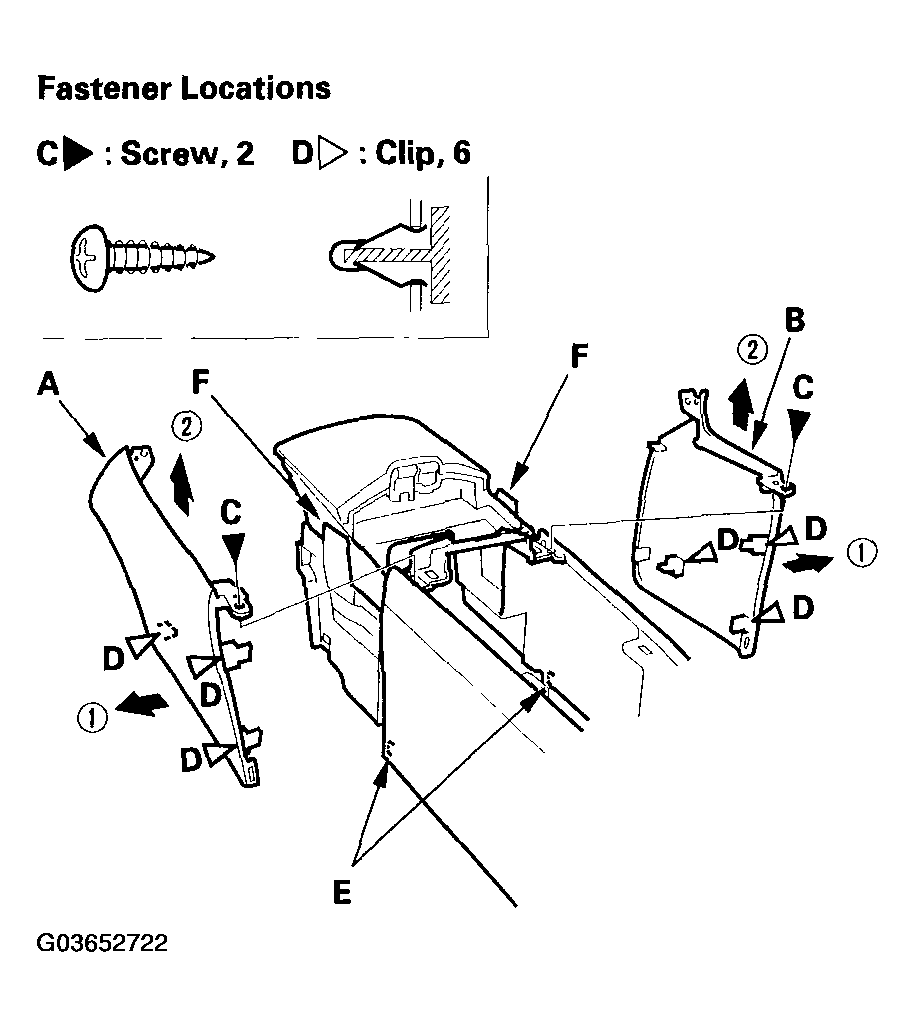

  Fig 1: Removing Driver's Console Side Trim And Passenger's Console Side Trim
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws (A), and detach the clips (B) by pulling the center console box (C) up, then remove it.

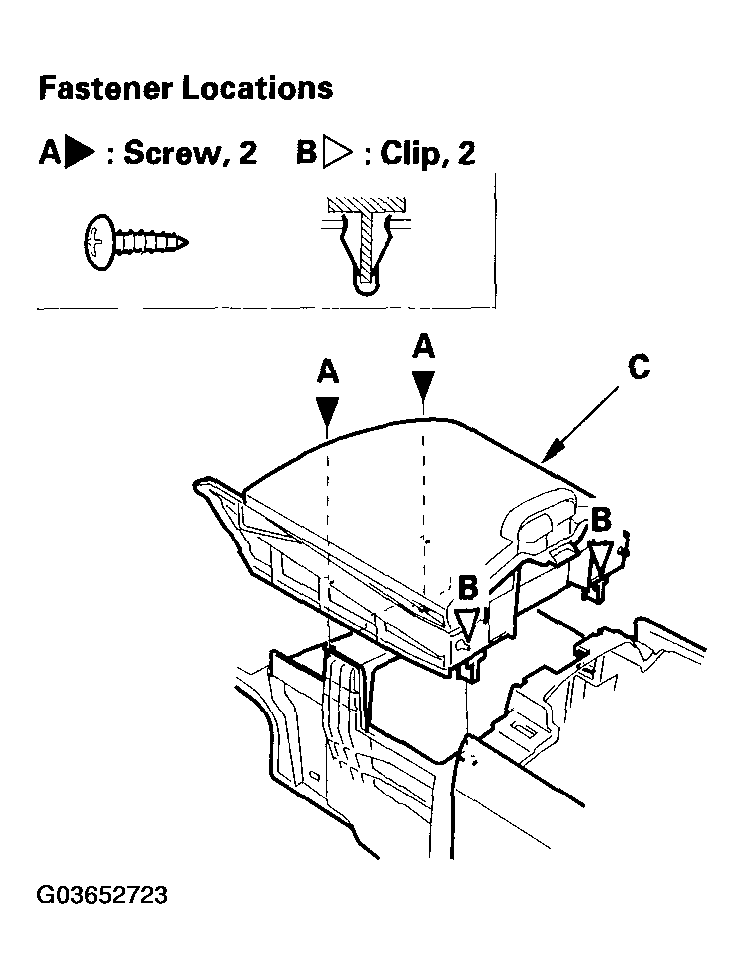

Fig 2: Detaching Clips By Pulling Center Console Box
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the box in the reverse order of removal, and note these items:
- Replace any damaged or stress-whitened clips.
- Push the clips into place securely.
