Rear Window Defogger Timer System

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1997 Acura NSX-T, 1997 Acura NSX, 1996 Acura NSX-T, 1996 Acura NSX, and 1995 Acura NSX-T. However, it is still accessible from the selected car via links, so may be relevant.

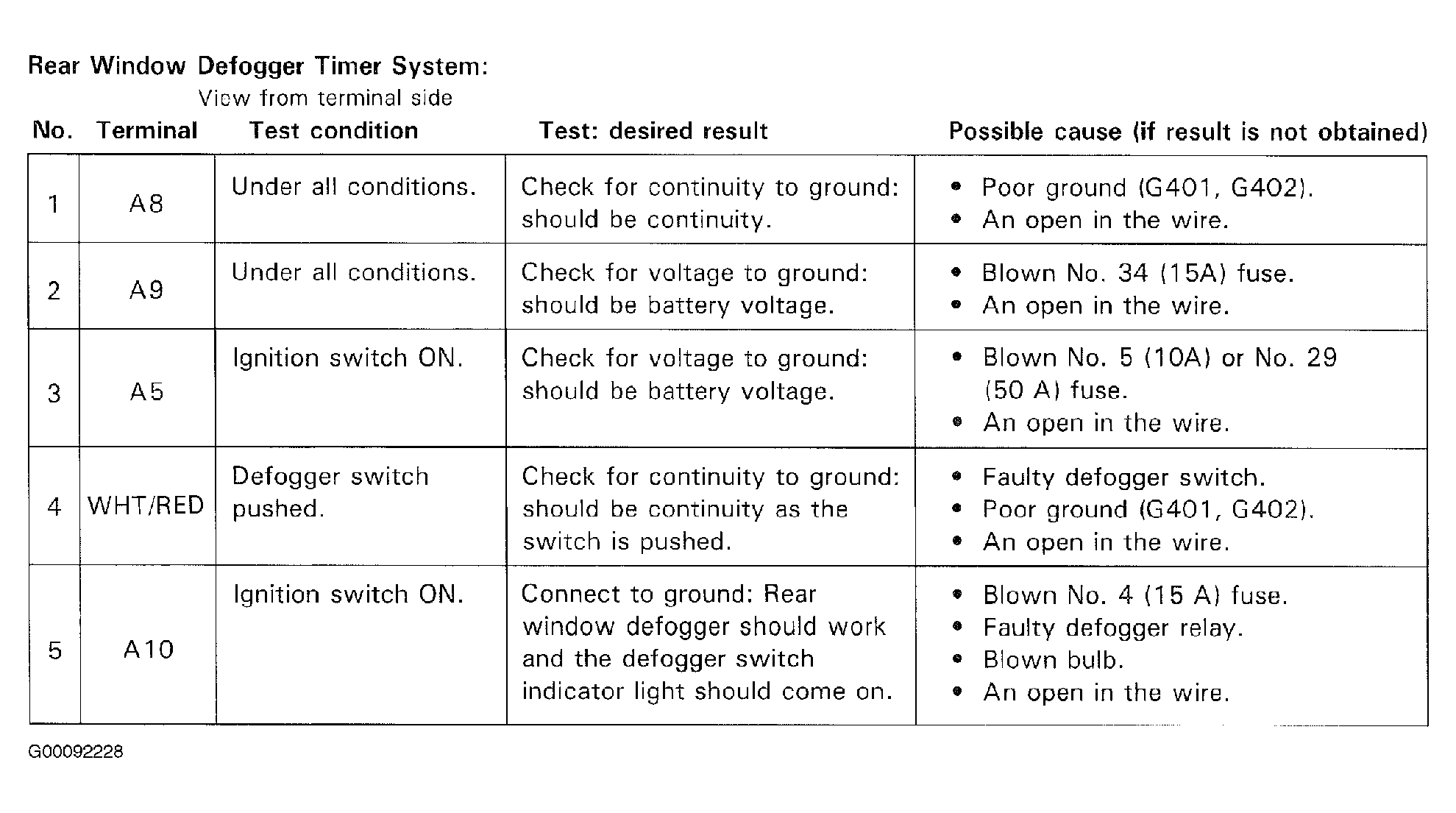

Fig 1: Rear Window Defogger Timer System Input Test
G00092228Courtesy of AMERICAN HONDA MOTOR CO., INC.
