P1129: Map Sensor (High)

If the scan tool indicates DTC P1129, Manifold Absolute Pressure (MAP) higher than expected. To diagnose, see Fig 1 .

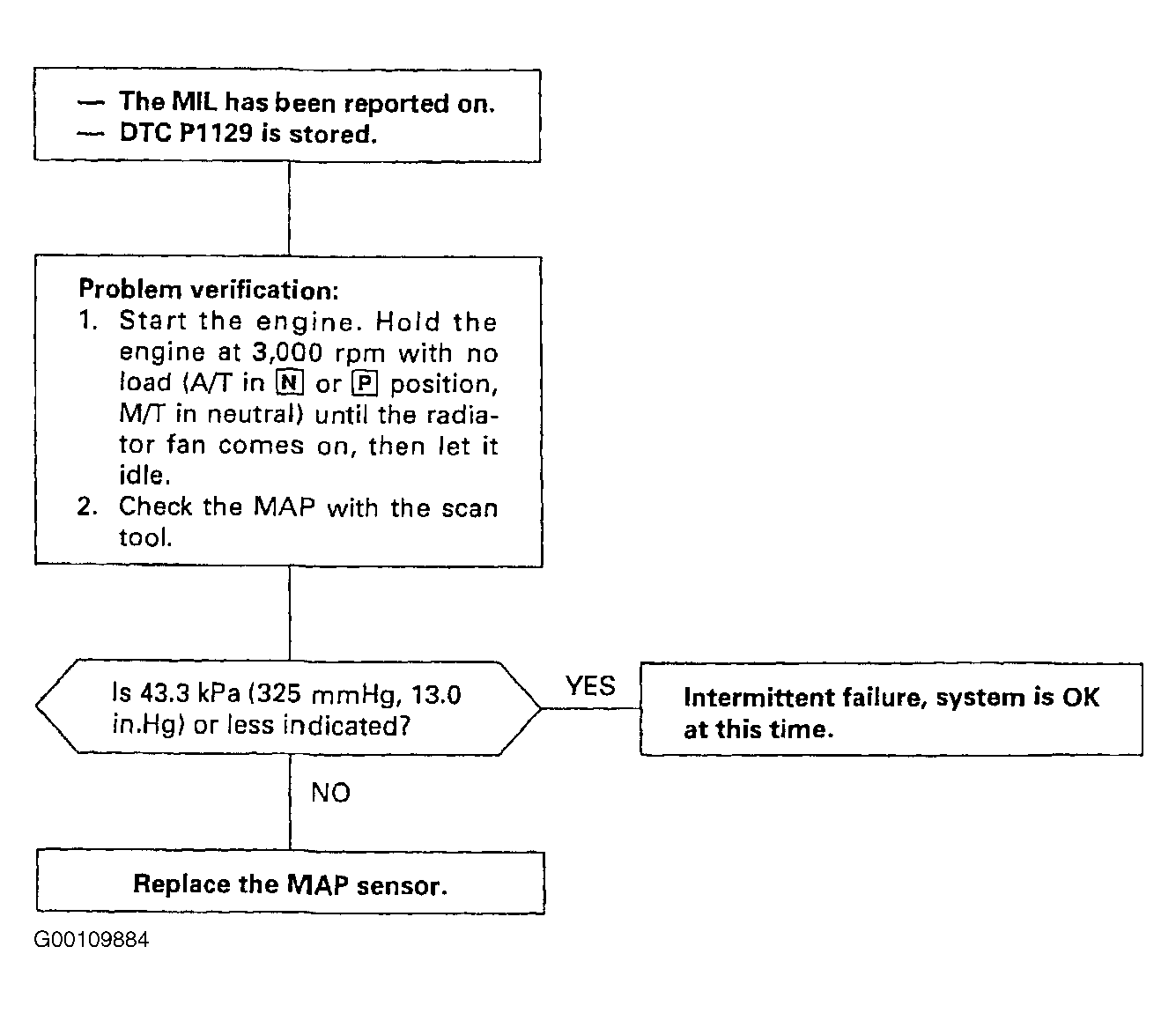

Fig 1: MAP Sensor Out Of Range Diagnostic Flow Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
