P1128: Map Sensor (Low)

If the scan tool indicates DTC P1128, Manifold Absolute Pressure (MAP) lower than expected. To diagnose, see Fig 1 .

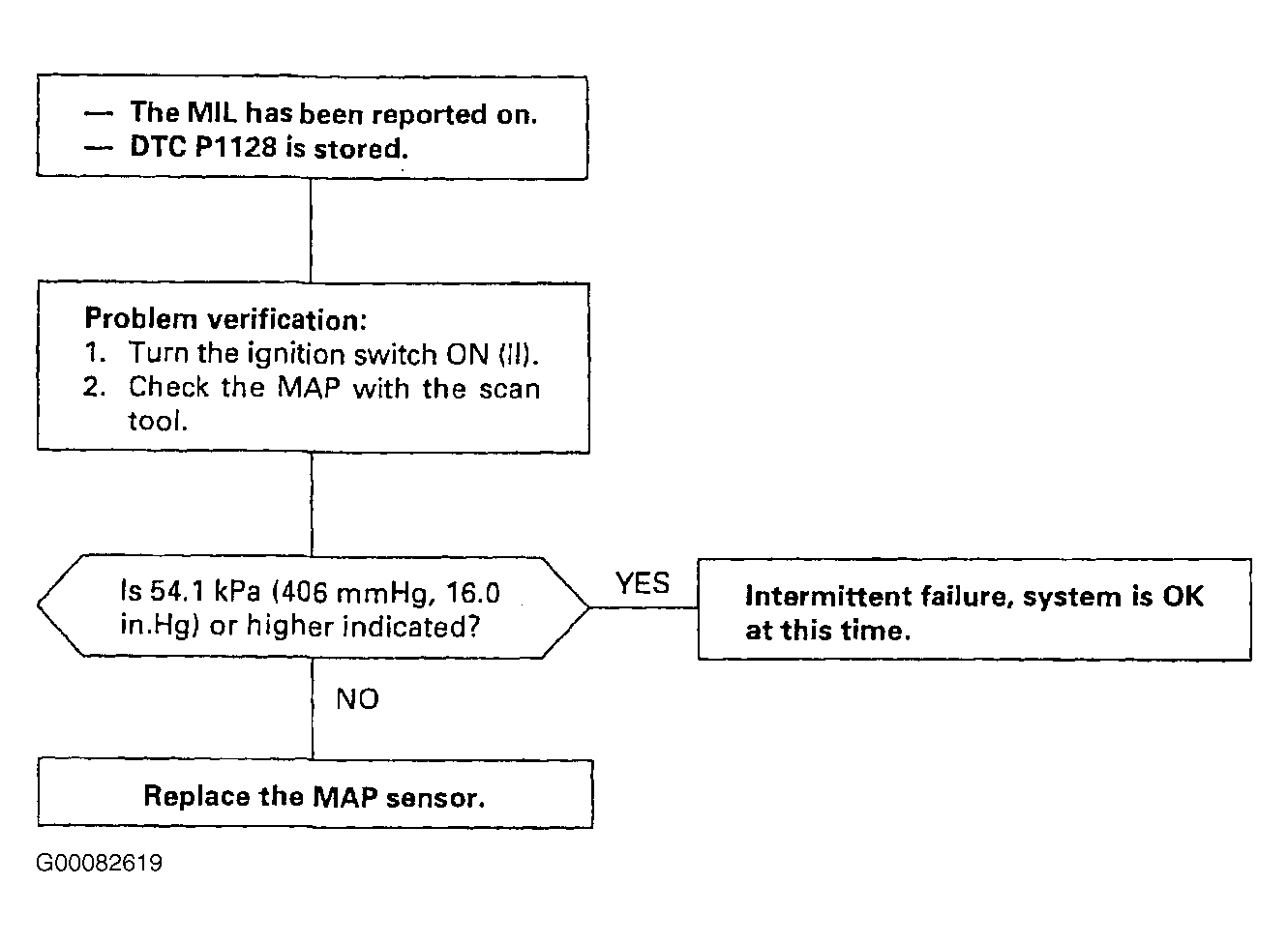

Fig 1: MAP Sensor Circuit Low Diagnostic Flow Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
