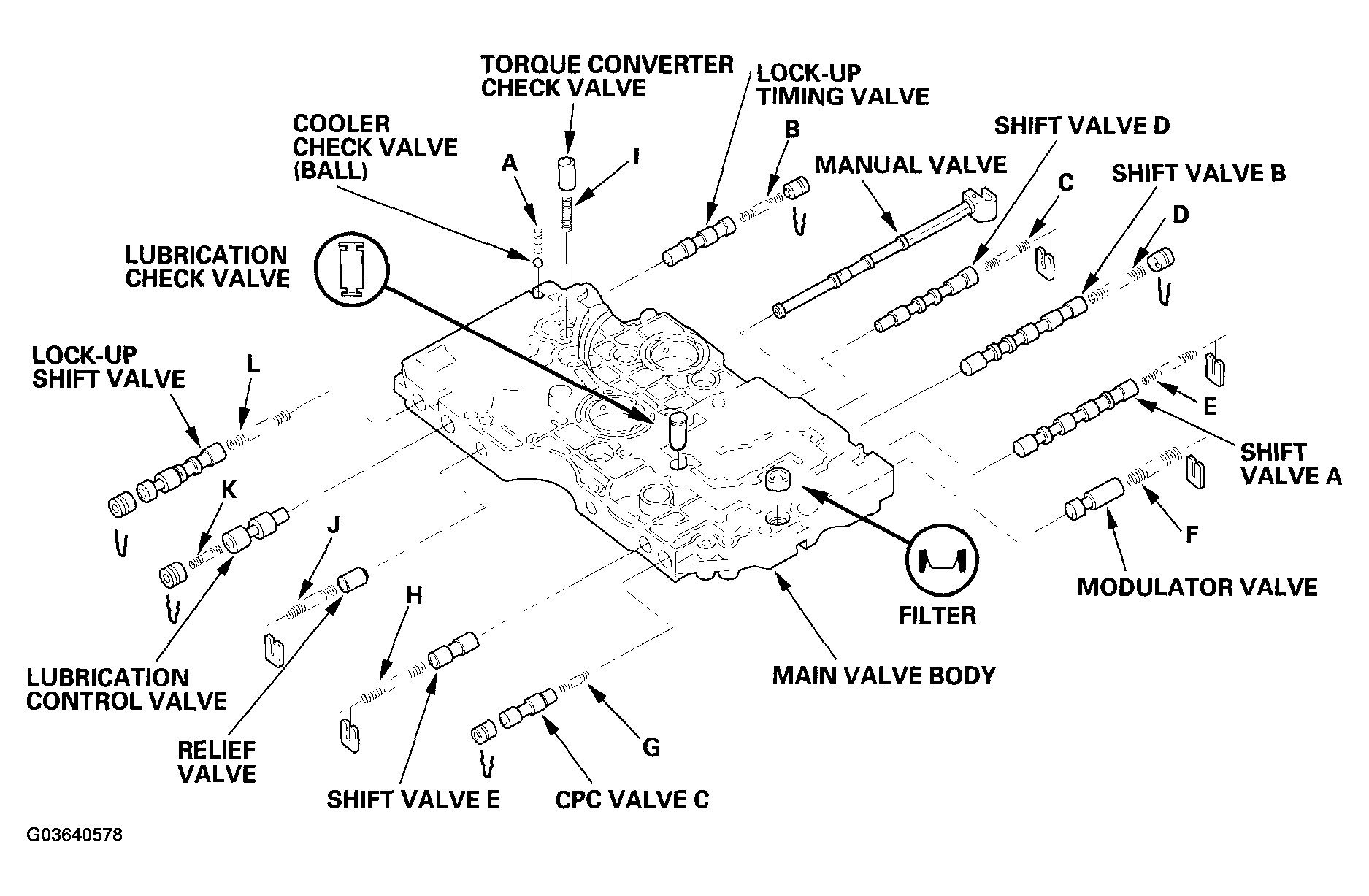

Main Valve Body Disassembly, Inspection, and Reassembly: Notes
- Clean all parts thoroughly in solvent or carburetor cleaner, and dry them with compressed air. Blow out all passages.
- Do not use a magnet to remove the cooler check valve, it may magnetize the check valve (ball).
- Inspect the main valve body for scoring and damage.
- Check all valves for free movement. If any fail to slide freely, refer to valve body repair (see VALVE BODY
).
- Coat all parts with ATF during assembly.
- Replace the filter with new one, and install it and lubrication check valve in the direction shown.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
