Control Shaft Bearing Replacement

Special Tools Required

• Bearing remover shaft 10 mm 07936-GE00100
• Bearing remover head 10 mm 07936-GE00200
• Sliding hammer weight 07741-0010201
• Driver 07749-0010000
• Attachment, 22 x 24 mm 07746-0010800

1. Remove the control shaft bearing from the transmission housing with the special tools.

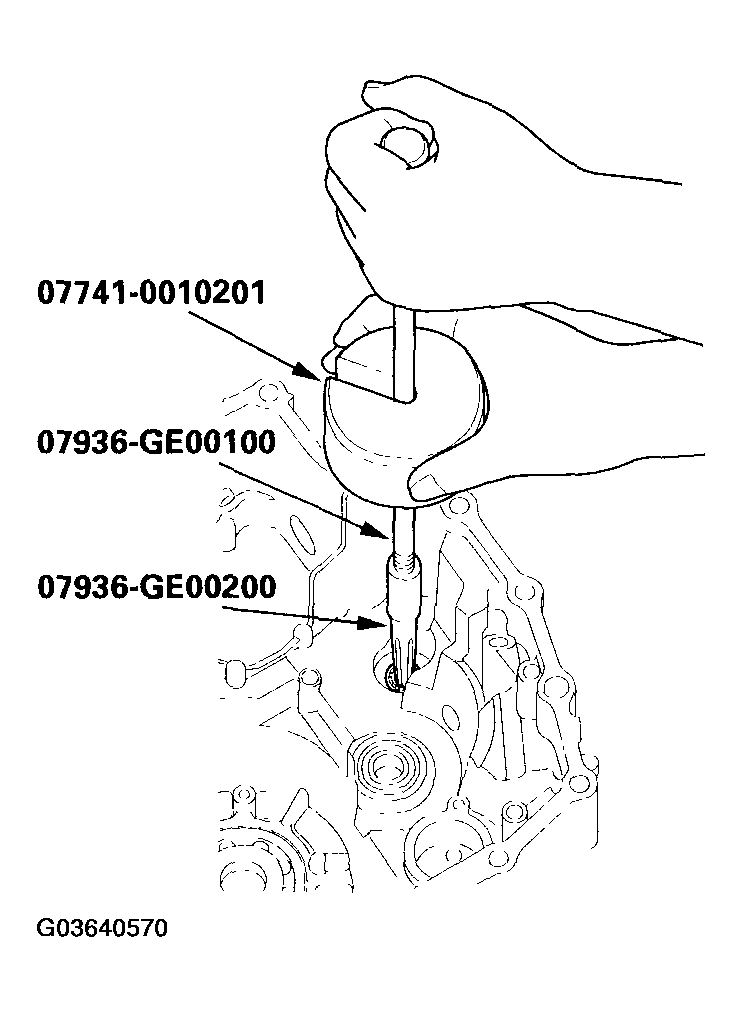

   Fig 1: Removing Control Shaft Bearing From Transmission Housing With Special Tools

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the new bearing in the transmission housing with the special tools.

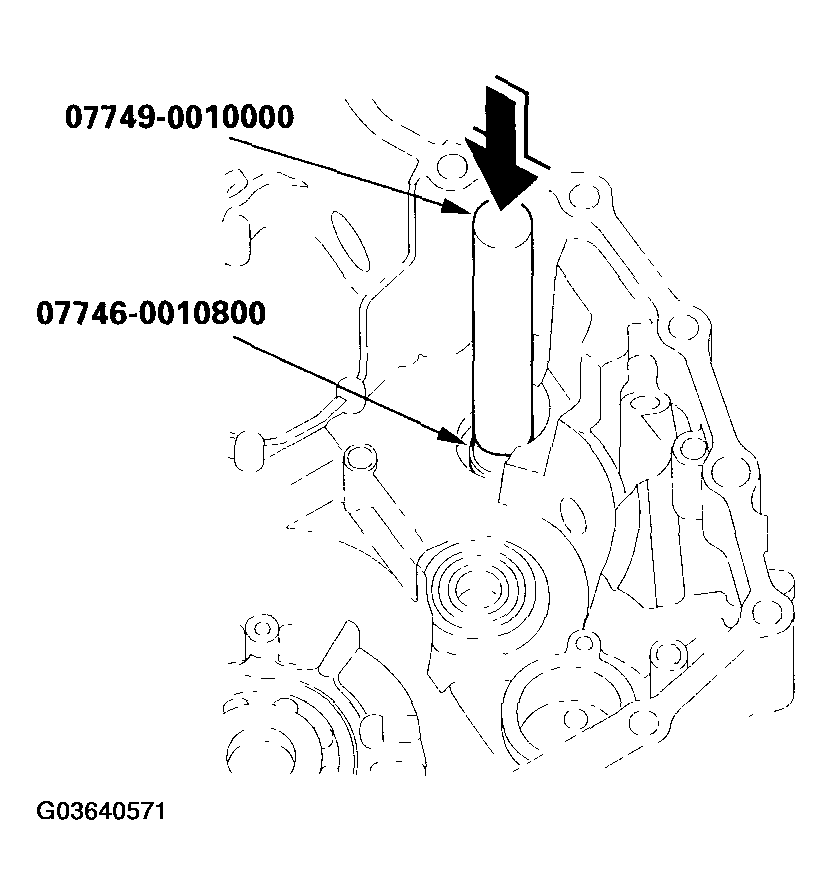

   Fig 2: Installing Bearing In Transmission Housing With Special Tools

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
