Transfer Hypoid Drive Gear Bearing Replacement

Special Tools Required

• Driver 07749-0010000
• Attachment, 42 x 47 mm 07746-0010300
• Attachment, 40 x 50 mm 07LAD-PW50601

1. Remove the tapered roller bearing (A) from the transfer hypoid drive gear (B) with the special tools, bearing separator (C) and a press.

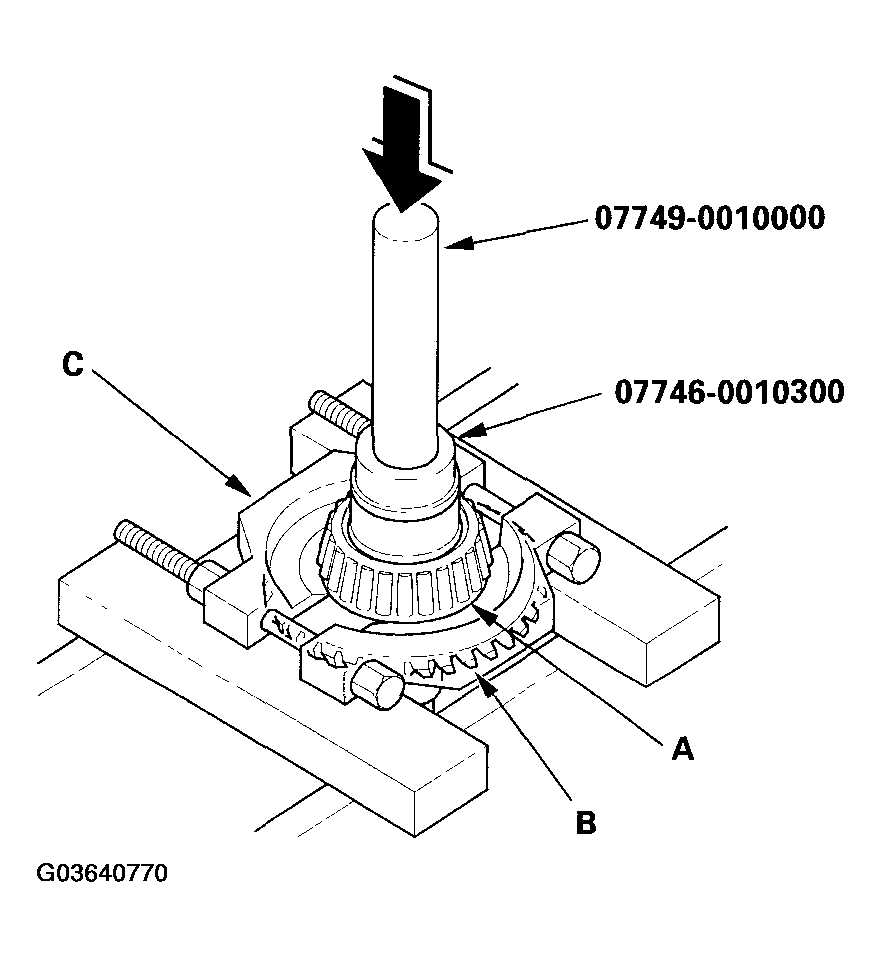

   Fig 1: Removing Tapered Roller Bearing From Transfer Hypoid Drive Gear With Special Tools

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the new bearing on the transfer hypoid drive gear with the special tools and a press.

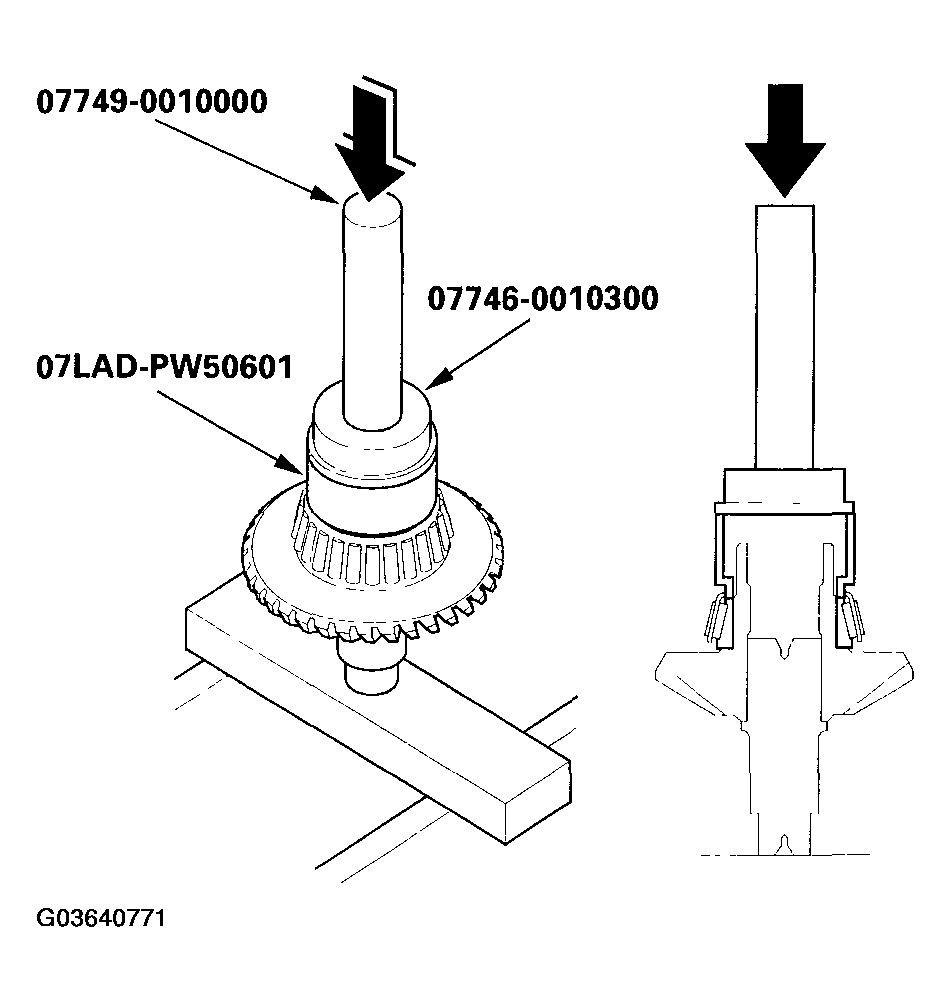

   Fig 2: Installing Bearing On Transfer Hypoid Drive Gear With Special Tools And Press

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
