Transfer Cover Oil Seal Replacement

Special Tools Required

• Driver 07749-0010000
• Attachment, 65 mm 07JAD-SH30100

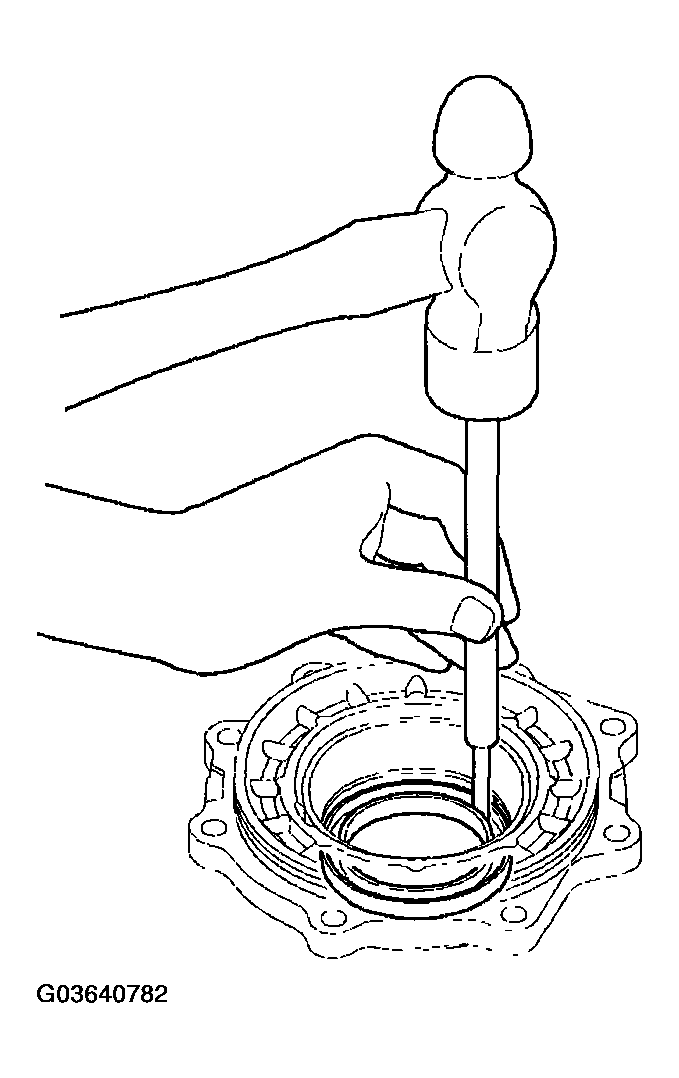

1. Remove the oil seal from the transfer cover.
   Fig 1: Removing Oil Seal From Transfer Cover

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

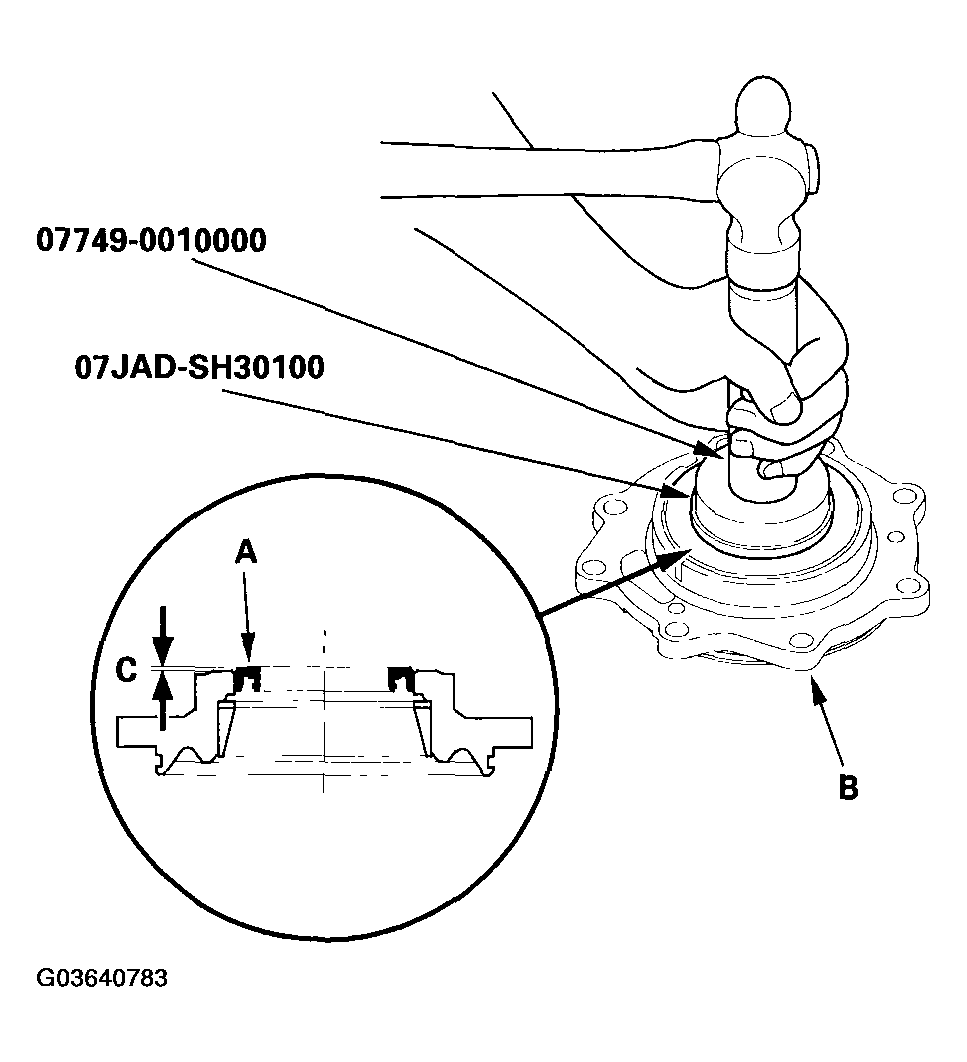

2. Install the new oil seal (A) in the transfer cover (B) in height (C) of 0-1 mm (0-0.04 in.) above the cover surface with the special tools.
   Fig 2: Installing Oil Seal In Transfer Cover Surface With Special Tools

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
