Input Shaft (Mainshaft) Speed Sensor Replacement

  1. Remove the splash shield.
  2. Disconnect the input shaft (mainshaft) speed sensor connector, and remove the input shaft (mainshaft) speed sensor.

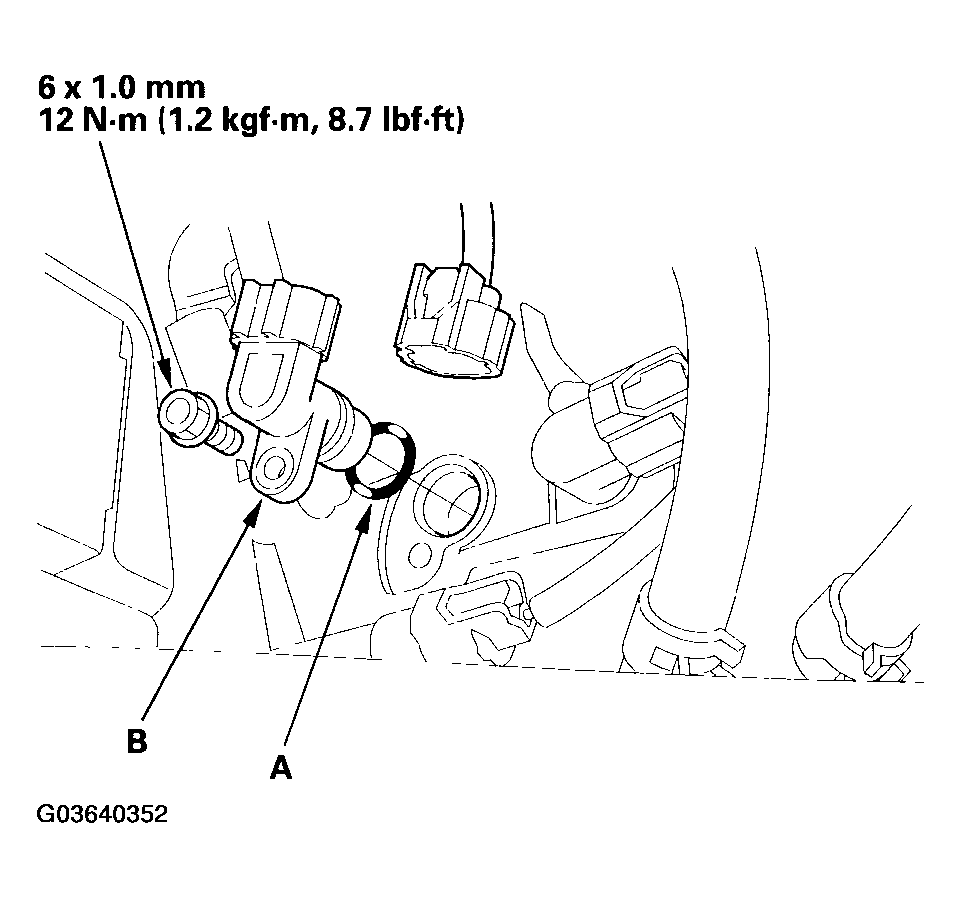

    Fig 1: Removing Input Shaft (Mainshaft) Speed Sensor
    G03640352Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the new O-ring (A) on the new input shaft (mainshaft) speed sensor (B), then install the input shaft (mainshaft) speed sensor in the transmission housing.
  4. Check the connector for rust, dirt, or oil, then connect the connector securely.
  5. Install the splash shield.
