Drive Plate Removal and Installation

  1. Remove the transmission assembly (see TRANSMISSION REMOVAL  ).
  2. Remove the drive plate (A) and washer (B) from the engine.

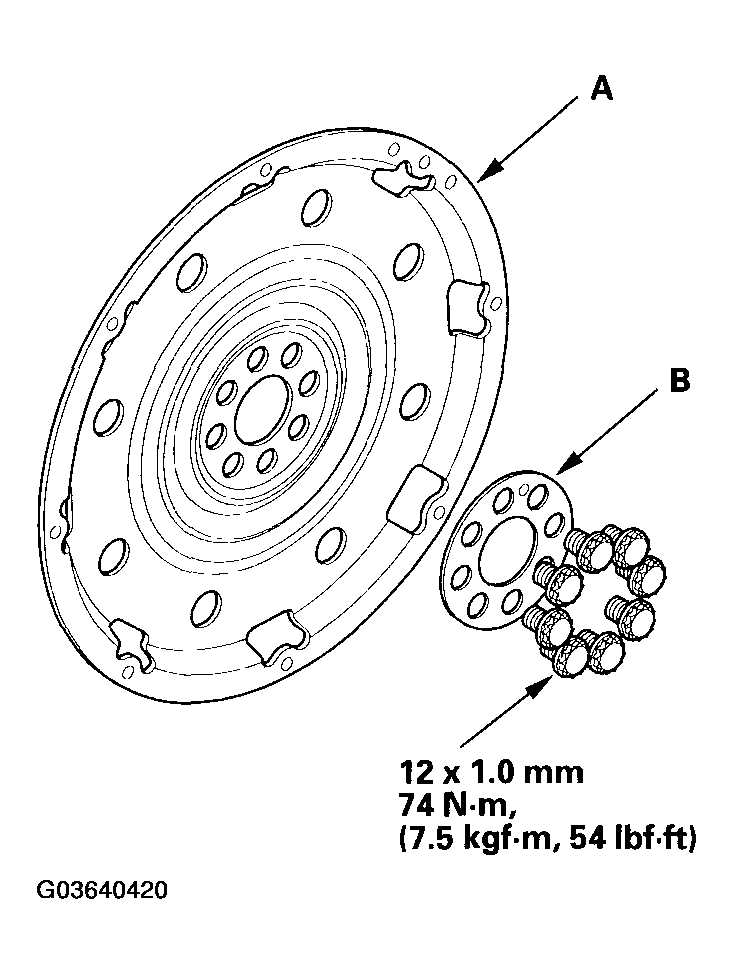

    Fig 1: Removing Drive Plate And Washer From Engine
    G03640420Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the drive plate and washer on the engine crankshaft, and tighten the eight bolts in a crisscross pattern.
  4. Install the transmission assembly (see TRANSMISSION INSTALLATION  ).
