ATF Cooler Hose Replacement

  1. Connect the cooler hoses (A) to the ATF cooler lines (B) and ATF cooler, and secure them with the clips (C).

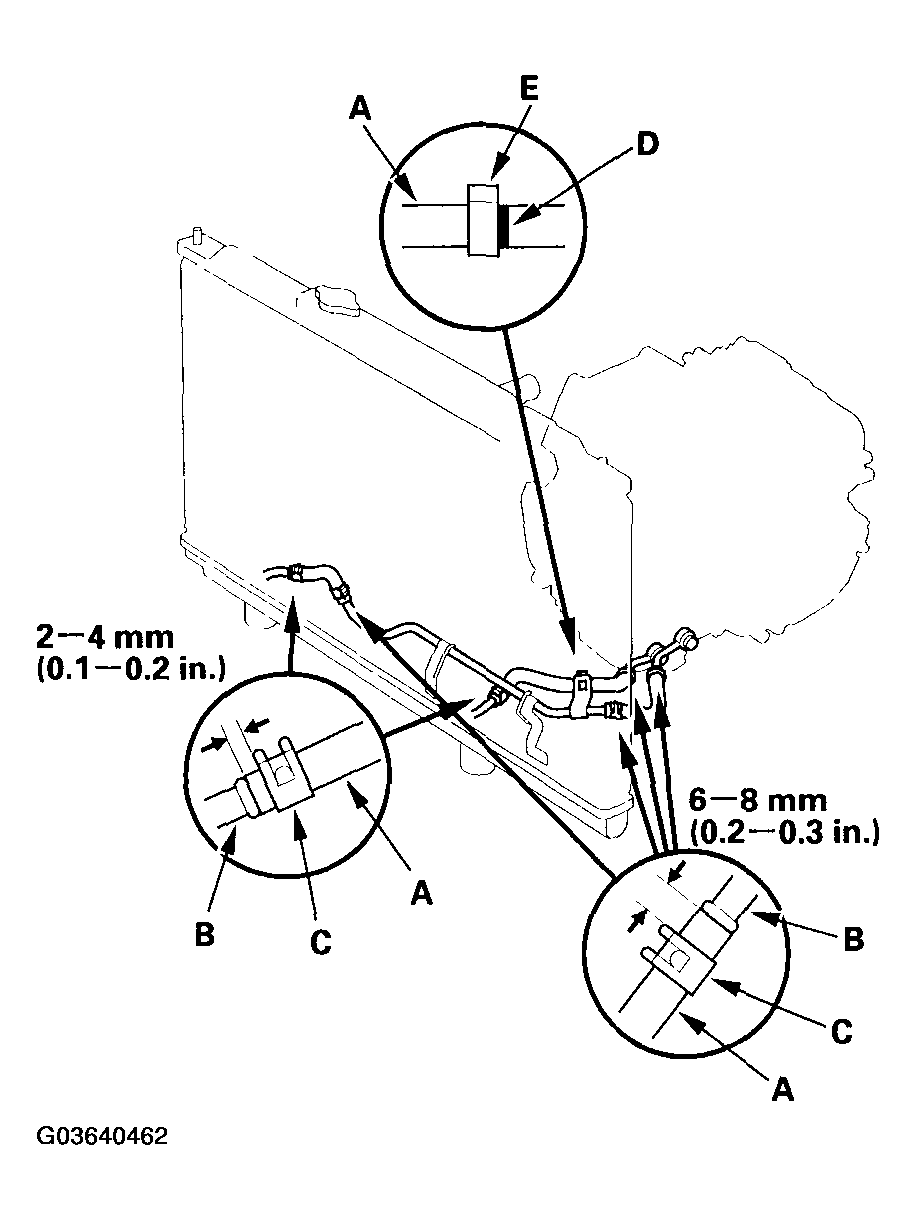

    Fig 1: Connecting Cooler Hoses To ATF Cooler Lines And ATF Cooler
    G03640462Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Clamp the ATF cooler hose with the yellow mark (D) on the clamp (E).
