Home >> Acura >> 2003 >> MDX Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> A/T Differential >> Component Location Index

Component Location Index

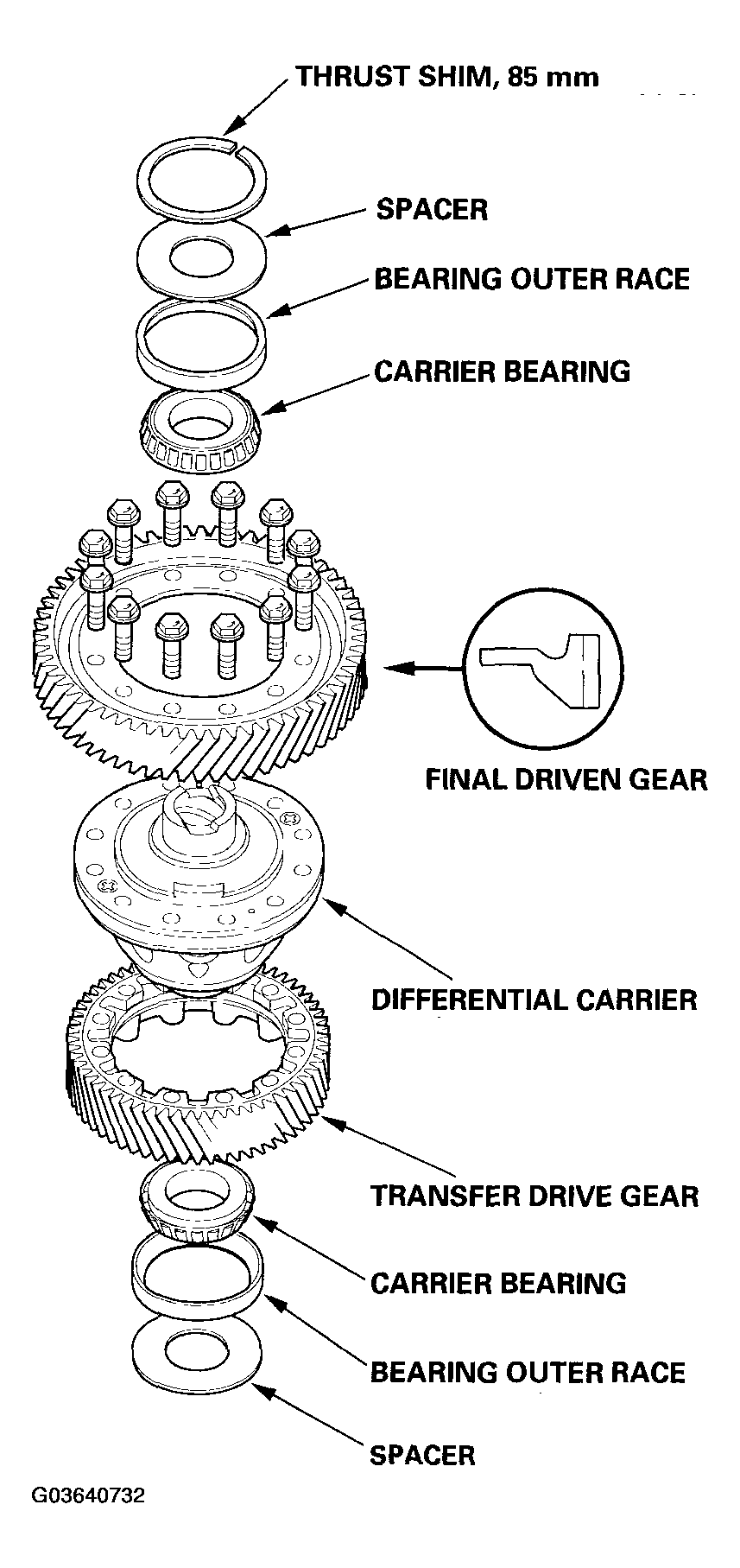

Fig 1: Identifying A/T Differential Components Location

G03640732

Courtesy of AMERICAN HONDA MOTOR CO., INC.
