3rd Clutch Transmission Fluid Pressure Switch Replacement

  1. Remove the splash shield.
  2. Disconnect the 3rd clutch transmission fluid pressure switch connector.

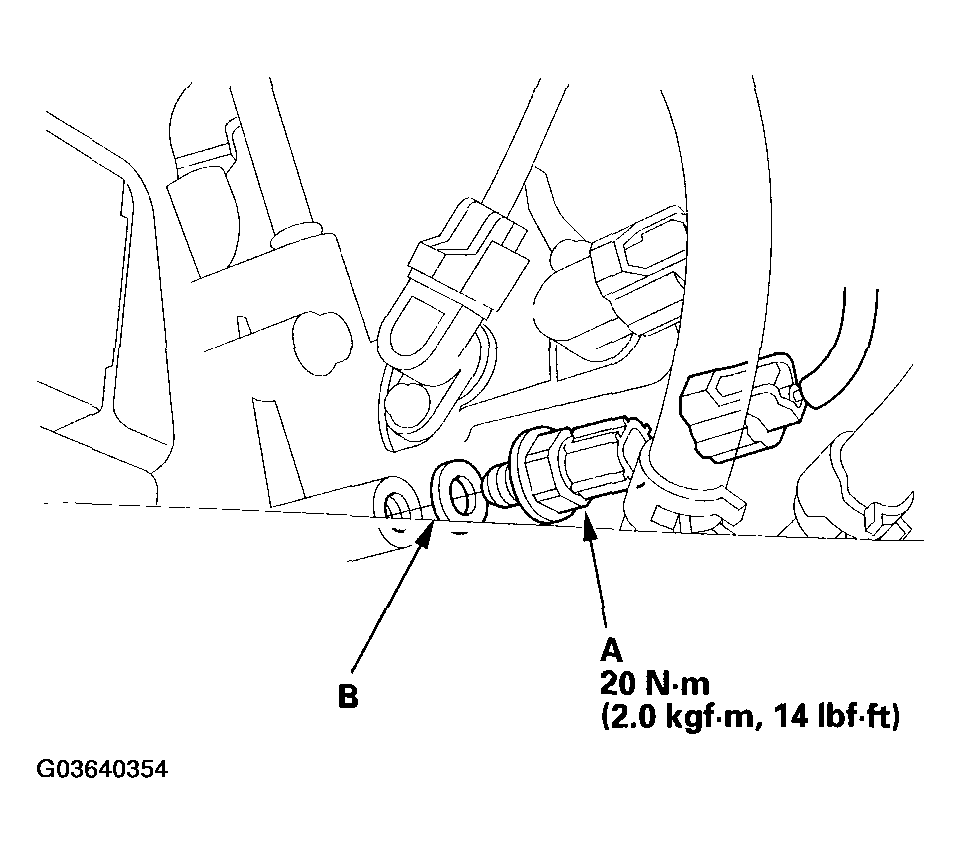

    Fig 1: Disconnecting 3rd Clutch Transmission Fluid Pressure Switch Connector
    G03640354Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Make sure there is no water, oil, dust, or foreign particles inside the connectors.
  4. Install the new 3rd clutch transmission fluid pressure switch (A) with a new sealing washer (B), and tighten the switch to the specified torque.
  5. Connect the connector securely.
  6. Install the splash shield.
