Fluid Leakage Inspection

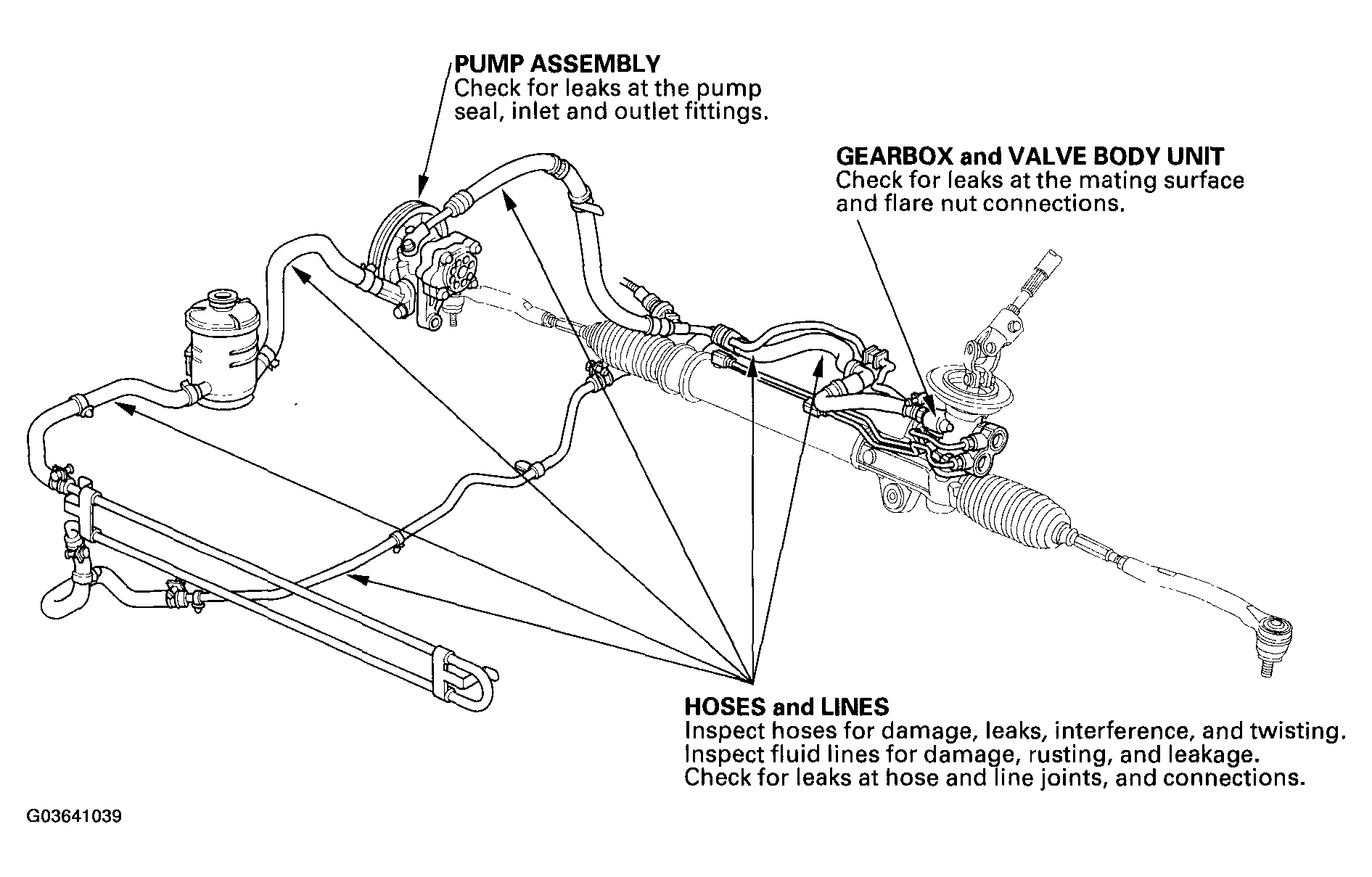

Fig 1: Identifying Fluid Leakage Components

G03641039

Courtesy of AMERICAN HONDA MOTOR CO., INC.
