Bushing Replacement

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the self-locking nut (A), then remove the rear side of lower arm bushing with bracket (B).
    Fig 1: Identifying Lower Arm Bushing With Bracket
    G05486558Courtesy of AMERICAN HONDA MOTOR CO., INC.

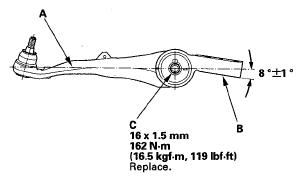

  2. Align the angle of the lower arm center line (A) and the under edge line (B) of the bushing bracket.
    Fig 2: Angle Of Lower Arm Center Line And Under Edge Line With Torque Specification
    G05486559Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install a new self-locking nut (C), then tighten the nut to the specified torque value.
