Exploded View-With active damper system

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

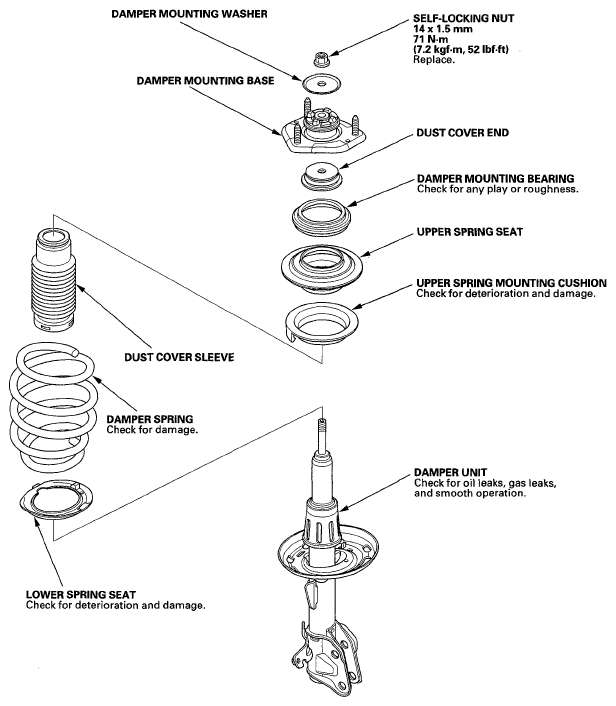

Fig 1: Exploded View Of Damper/Spring (With Active Damper System) With Torque Specification

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:

When compressing the damper spring, use a commercially available strut spring compressor (Branick MST-580A or Model 7200, or equivalent) according to the manufacturer's instructions.
Except where called out, the illustrations are shown without active damper system.
