NOTE:

Take care not to scratch the covers, roof rail, and the body.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
When using a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Pry up on the front cover (A) with a trim tool to detach the clips and rib (B) from the front bracket (C), then remove the cover by pulling the cover forward.

Fig 1: Identifying Front Cover And Front Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pry up on the rear cover (A) with a trim tool to detach the clips from the rear bracket (B), then remove the cover by pulling the cover rearward.

Fig 2: Identifying Rear Cover And Rear Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

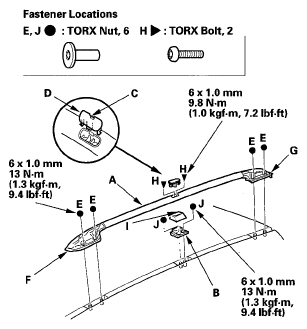

Remove the roof rail (A) and the center bracket (B).
1. Using a trim tool, pry the notch (C), then remove the roof rail bar cap (D).
2. Using a TORX T30 bit, remove the nuts (E) from the front bracket (F) and the rear bracket (G).
3. Using a TORX T30 bit, remove the bolts (H), then remove the roof rail.
4. Remove the center cover (I), and using a TORX T30 bit, remove the nuts (J), then remove the center bracket.

  Fig 3: Center Cover And Nuts With Torque Specification
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the roof rail in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
