Trim Replacement

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Take care not to scratch the front grille.
  • Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
  1. Remove the front grille.
  2. Remove the screw. From behind the grille, pry up on the hooks (A) with a trim tool, then remove the front grille trim (B), and the front grille seal (C) from the front grille base (D). The left front grille trim is shown; the right front grille trim is similar.

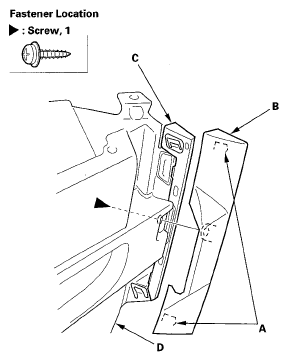

    Fig 1: Identifying Trim Hooks, Grill And Screw
    G05487453Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the trim in the reverse order of removal, and push the hooks into place securely.
