Thermostat Replacement

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery terminal disconnection procedure(See DISCONNECTION . Remove the battery (See REMOVAL .
  2. Remove the air intake duct (see step 8 on REMOVAL ).
  3. Drain the engine coolant (see COOLANT CHECK  ).
  4. Remove the thermostat cover, then remove the thermostat.

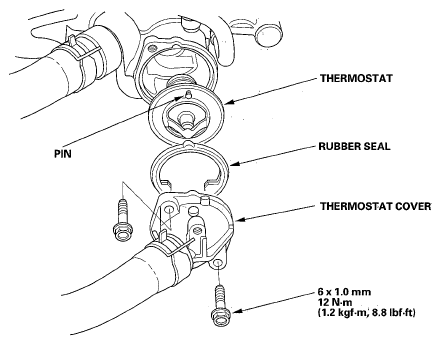

    Fig 1: Thermostat Location With Torque Specification
    G05484880Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the new thermostat with a new rubber seal and with the pin on the top side.
  6. Install the battery(See INSTALLATION . Do the battery terminal reconnection procedure(See RECONNECTION .
  7. Refill the radiator with engine coolant, then bleed air from the cooling system (see step 10 on COOLANT REPLACEMENT  ).
  8. Clean up any spilled engine coolant.
