Brake Pedal Replacement

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
  2. Remove the TPMS control unit (see TPMS CONTROL UNIT REPLACEMENT ).
  3. Disconnect the brake pedal position switch connector (A), and remove the harness clips.

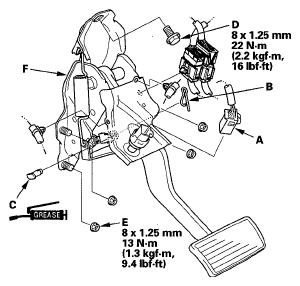

    Fig 1: Brake Pedal Position Switch Connector And Harness Clips With Torque Specifications
    G05486845Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the lock pin (B) and joint pin (C).
  5. Remove the harness and connector clips.
  6. Remove the brake pedal bracket mounting bolt (D) and nuts (E).
  7. Remove the brake pedal with bracket (F).
  8. Install in the reverse order of removal.
  9. Do the brake pedal and brake pedal position switch adjustment (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT  ).
