Brake Hose Replacement: Rear

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear wheel.

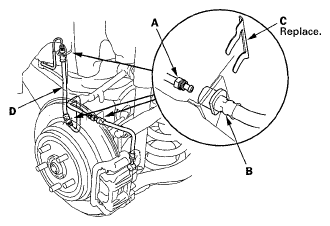

Disconnect the brake lines (A) from the brake hoses (B), then remove the brake hose clips (C).

Fig 1: Identifying Brake Lines, Brake Hoses And Brake Hose Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the front side brake hose (D).
Remove the banjo bolt (A), and disconnect the brake hose from the caliper.

Fig 2: Identifying Banjo Bolt And Front Side Brake Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the rear side brake hose (B).
Connect the rear side brake hose to the caliper with the banjo bolt (A) and new sealing washers (B).

Fig 3: Banjo Bolt And Sealing Washers With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install new brake hose clip (A) to the brake hoses (B) on the brackets, then connect the brake lines (C). Do not twist the brake hoses.

Fig 4: Brake Hose Clip, Brake Hoses And Brake Lines With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
After installing the brake hoses, bleed the brake system (see BRAKE SYSTEM BLEEDING ).
Do the following checks:
- Check the brake hose and line joint for leaks, and tighten if necessary.
- Check the brake hoses for interference and twisting.
Clean the mating surfaces of the brake disc/drum and the inside of the wheel, then install the rear wheel.
