Speaker check mode

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to ON (II).
  2. Push and hold the No. 1 and No. 3 buttons. While holding the buttons, push the VOL PUSH PWR knob to ON. Release the buttons and the speaker check mode begins. A tone or low-frequency hum should sound from one speaker.
  3. Each time you press the SEEK or CH button, the speaker outputs a beep sound in the listed order.

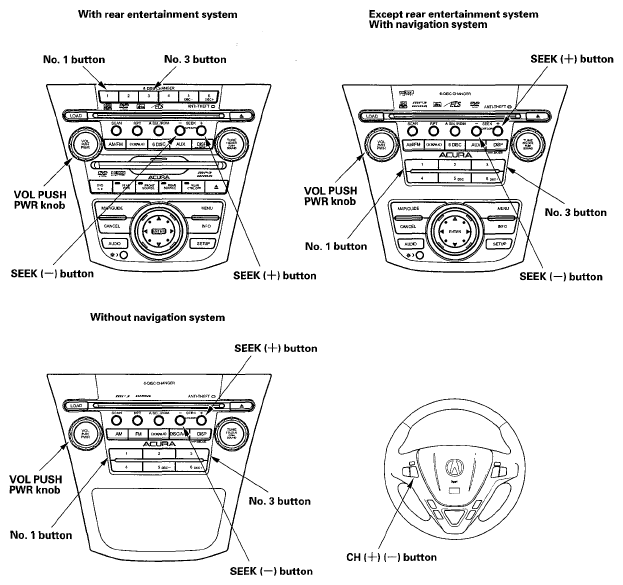

    Fig 1: Identifying Audio System Buttons
    G05488451Courtesy of AMERICAN HONDA MOTOR CO., INC.

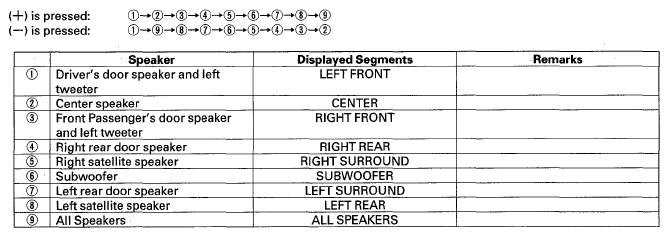

    Display Specifications

    Fig 2: Audio Unit Screen - Display Specifications
    G05488452Courtesy of AMERICAN HONDA MOTOR CO., INC.
    NOTE: Any other diagnostic screens shown are for the audio manufactures purpose only.
  4. The speaker check mode ends when you turn the audio unit off, or turn the ignition switch to LOCK (0).
