Circuit Diagram

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

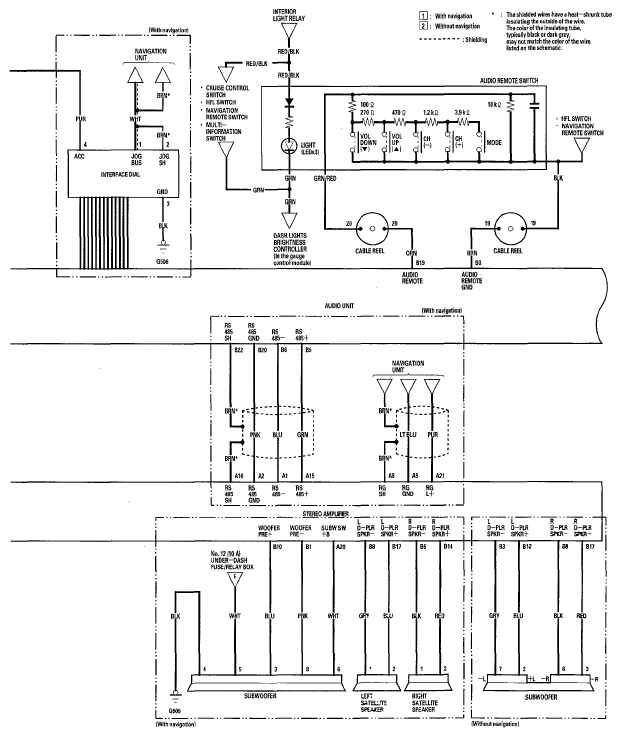

Fig 1: Audio System Circuit Diagram (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

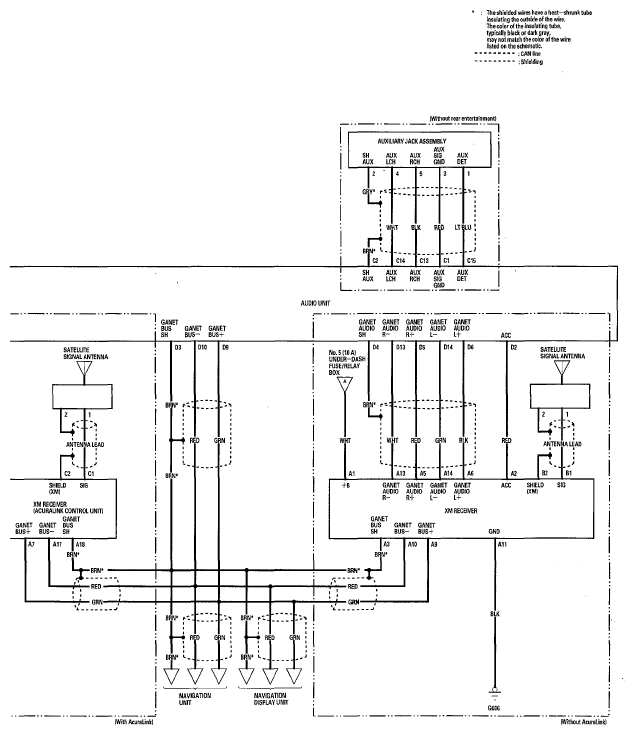

Fig 2: Audio System Circuit Diagram (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

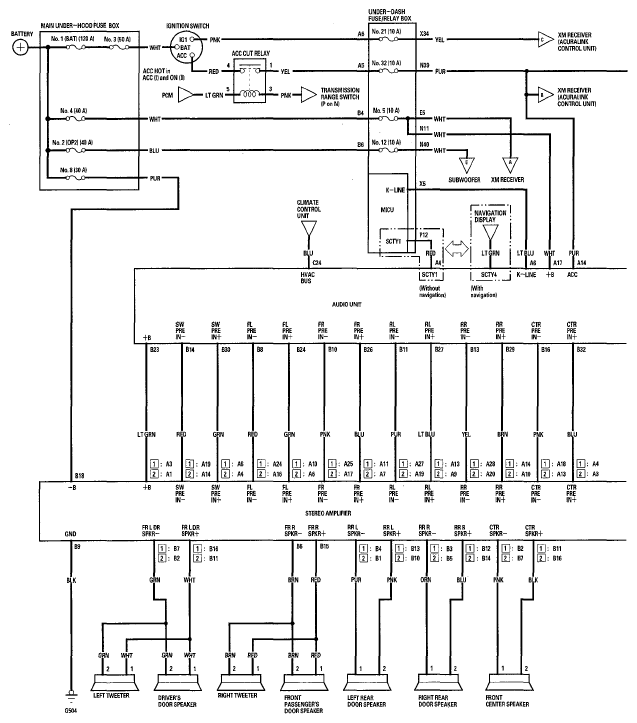

Fig 3: Audio System Circuit Diagram (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

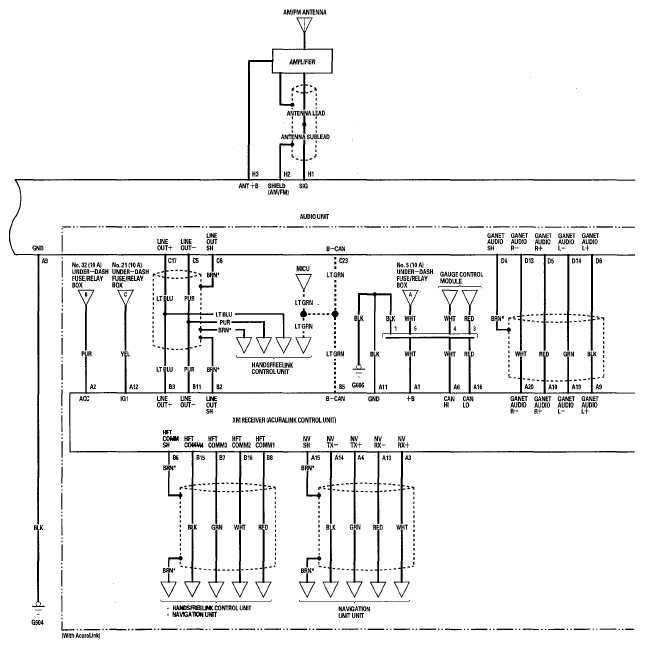

Fig 4: Audio System Circuit Diagram (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
